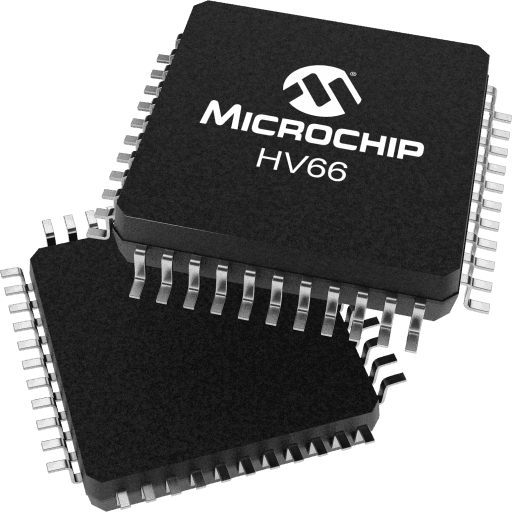

Microchip HV66PG-G

Manufacturer No:

HV66PG-G

Manufacturer:

Microchip

Package:

44-QFP

Description:

32-CHANNEL LCD DRIVER WITH BACKPLANE, 32V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HV66PG-G information

Microchip HV66PG-G technical specifications, attributes, parameters and parts with similar specifications to Microchip HV66PG-G.

Type
Parameter

Type
Source-Sink

Output Channels
32

Vout Operating (V) - Transient
70

Vout Operating (V) - Sustained
60

Iout (mA) per Channel
±5.0

Output Structure
Half-Bridge

Input Structure
Serial

Minimum Data Clock (MHz)
5

General Description
Serial to parallel converter with latches, polarity, and blanking

Package
44/PQFP 44/PLCC

Download datasheets and manufacturer documentation for Microchip HV66PG-G.

Data Sheets:

c50b891201d588d01cc3e0ab5fa7ced0.pdf

The HV66 is a low voltage serial to high voltage parallel converter with push-pull outputs. This device has been designed for use as a driver circuit for LCD displays. It can also be used in any application requiring multiple output high voltage current sourcing and sinking capabilities. The inputs are fully CMOS compatible. The device consists of a 32-bit shift register, 32 latches, and control logic to perform blanking and polarity control of the outputs. HVOUT1 is connected to the first stage of the shift register. Data is shifted through the shift register on the logic rising transition of the clock. A DIR pin causes data shifting clockwise when grounded and counter clockwise when connected to VDD. A data output buffer is provided for cascading devices. This output reflects the current status of the last bit of the shift register. Operation of the shift register is not affected by the LE (latch enable), BL (blank) or the POL (polarity) inputs. Transfer of data from the shift register to the latch occurs when the LE (latch enable) input is high. The data in the latch is stored after LE transitions from high to low.

HVCMOS® technology
32 push-pull CMOS output up to 60V
Low power level shifting
Shift register speed 5.0MHz
Latched data outputs
Bidirectional shift register (DIR)
Backplane output
