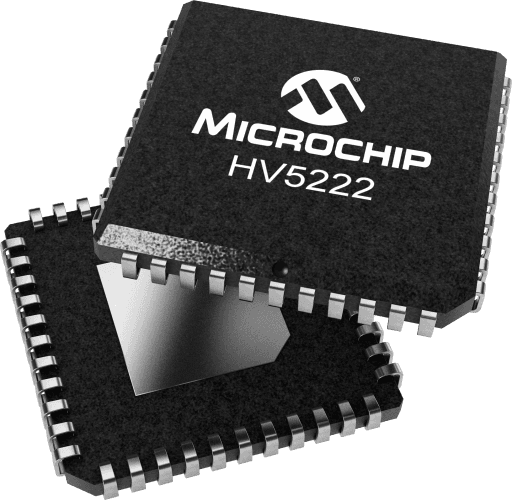

Microchip HV5222PG-G

Manufacturer No:

HV5222PG-G

Manufacturer:

Microchip

Package:

44-QFP

Description:

32-CHANNEL, W/OPEN DRAIN OUTPUTS, 220V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HV5222PG-G information

Microchip HV5222PG-G technical specifications, attributes, parameters and parts with similar specifications to Microchip HV5222PG-G.

Type
Parameter

Type
Sink

Output Channels
32

Vout Operating (V) - Transient
250

Vout Operating (V) - Sustained
225

Iout (mA) per Channel
100

Output Structure
N-Ch Open Drain

Input Structure
Serial

Minimum Data Clock (MHz)
8

General Description
Serial to parallel converter with output enable and strobe

Package
44/PQFP 44/PLCC 44/CERQUAD

Download datasheets and manufacturer documentation for Microchip HV5222PG-G.

Data Sheets:

b0be932d632ebbf9e679232baf0f83cc.pdf

The HV5222 is a low voltage serial to high voltage parallel converter with open drain outputs. This device has been designed for use as a driver for AC electroluminescent displays.They can also be used in any application requiring multiple output high voltage current sinking capabilities such as driving inkjet and electrostatic print heads, plasma panels, vacuum fluorescent, or large matrix LCD displays. This device consists of a 32-bit shift register and control logic to perform the Output Enable and all-on functions. Data is shifted through the shift register on the high to low transition of the clock. The HV5222 shifts in the clockwise direction when viewed from the top of the package. A data output buffer is provided for cascading devices. This output reflects the current status of the last bit of the shift register. Operation of the shift register is not affected by the OE(Output Enable) or the STR (Strobe) inputs. The HV5222 has been designed to be used in systems which either switch off the high voltage supply before changing the state of the high voltage outputs or which limit the current through each output.

Processed with HVCMOS® technology
Output voltages to 225V using a ramped supply voltage
SINK current minimum 100mA
Shift register speed 8.0MHz
Strobe and enable inputs
CMOS compatible inputs
Forward and reverse shifting options
