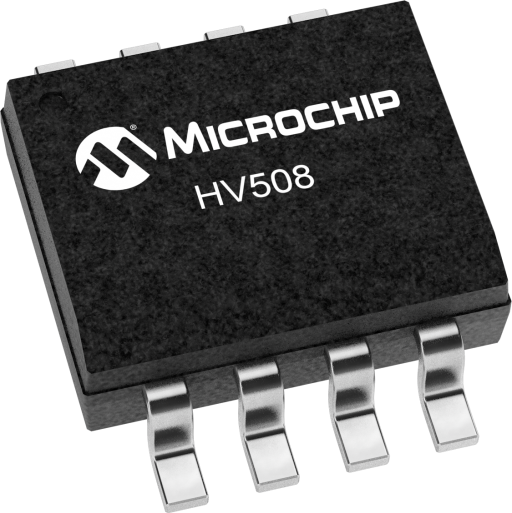

Microchip HV508LG-G

Manufacturer No:

HV508LG-G

Manufacturer:

Microchip

Package:

8-SOIC (0.154, 3.90mm Width)

Description:

LARGE LIQUID CRYSTAL DISPLAY DRIVER, 45V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HV508LG-G information

Microchip HV508LG-G technical specifications, attributes, parameters and parts with similar specifications to Microchip HV508LG-G.

Type
Parameter

Type
Source-Sink

Output Channels
2

Vout Operating (V) - Transient
60

Vout Operating (V) - Sustained
45

Iout (mA) per Channel
-2.8, +0.38

Output Structure
Half-Bridge

Input Structure
Parallel

Minimum Data Clock (MHz)
--

General Description
H-Bridge output with two output voltage level selections and polarity; Specially targetd as LCD Shutter Driver

Package
8/SOIC 150mil

Download datasheets and manufacturer documentation for Microchip HV508LG-G.

Data Sheets:

0b556fc47c08b175199aba593dedecc4.pdf

HV508 is a 45V liquid crystal shutter driver in an 8-Lead SOIC surface mount package. It consists of two outputs that provide square waves of opposite phase. The liquid crystal shutter is connected between the two outputs. Its equivalent load can be approximated as a resistor in parallel with a capacitor. Minimum resistance is 1.0M? and maximum capacitance is 0.1µF. The HV508 has three input supply voltages, HVIN, LVIN, and VDD. The output’s amplitude will be either LVIN or HVIN. A logic high on the HVEN input will set the output to operate from the HVIN supply. A logic low on the HVEN input will set the output to operate from the LVIN supply. The output frequency is set by the logic input frequency applied on the POL input.

HVCMOS® technology for high performance
Logic-selectable output voltage
100nF drive capability
Up to 90VP-P
25µs response time

User Guide
