Manufacturer No:

HTSS-105-01-L-DV-P-TR

Manufacturer:

SAMTEC

Package:

Description:

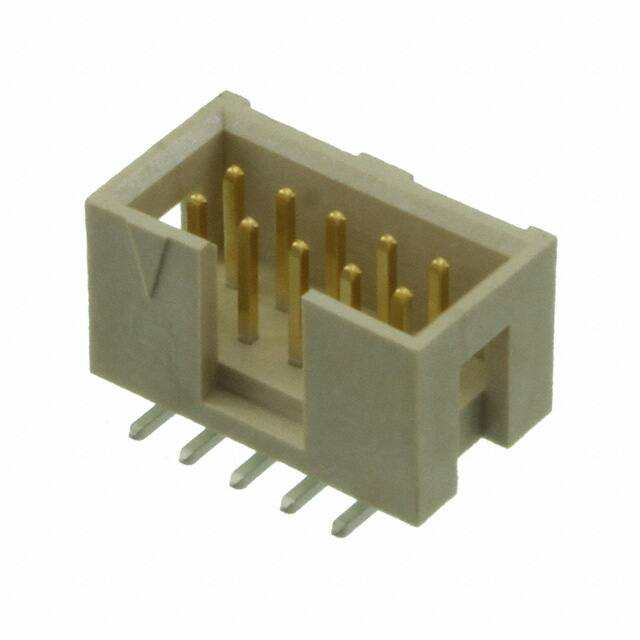

Flex Stack, HTSS Series 2-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount Gold Liquid Crystal Polymer (LCP) 10-Position Board to Board or Cable 0.350 8.89mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HTSS-105-01-L-DV-P-TR information

SAMTEC HTSS-105-01-L-DV-P-TR technical specifications, attributes, parameters and parts with similar specifications to SAMTEC HTSS-105-01-L-DV-P-TR.

  • Type
  • Parameter
  • Factory Lead Time
  • 3 Weeks
  • Contact Material
  • Phosphor Bronze
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Contact Shape
  • Square
  • Insulation Material
  • Liquid Crystal Polymer (LCP)
  • Housing Material
  • Polychlorinated
  • Operating Temperature
  • -55°C~125°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • Flex Stack, HTSS
  • Published
  • 2013
  • JESD-609 Code
  • e3
  • Feature
  • Keying Slot, Pick and Place
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Header
  • Number of Positions
  • 10
  • Number of Rows
  • 2
  • Gender
  • Male
  • Fastening Type
  • Push-Pull
  • Contact Finish - Mating
  • Gold
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Male Pin
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Total Number of Contacts
  • 10
  • Orientation
  • Straight
  • Depth
  • 9.27mm
  • Insulation Height
  • 0.350 8.89mm
  • Style
  • Board to Board or Cable
  • Number of Positions Loaded
  • All
  • Pitch - Mating
  • 0.100 2.54mm
  • Insulation Color
  • Natural
  • Row Spacing - Mating
  • 0.100 (2.54mm)
  • Shrouding
  • Shrouded - 4 Wall
  • Contact Finish - Post
  • Tin
  • Contact Length - Mating
  • 0.250 6.35mm
  • Max Current Rating
  • 3A
  • Length
  • 16.51mm
  • Contact Finish Thickness - Mating
  • 10.0μin 0.25μm
  • Material Flammability Rating
  • UL94 V-0
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for SAMTEC HTSS-105-01-L-DV-P-TR.

Datasheets:

HTSS-105-01-L-DV-P-TR Overview


It comes in Header packaging.The device's mounting type is Surface Mount.In order to package the product, a Tape & Reel (TR) case is used.It belongs to the Flex Stack, HTSS Series of products.Its Keying Slot, Pick and Place feature renders it more powerful in many ways.The part is mounted by Surface Mount.The device runs in -55°C~125°C Operating Temperature.

HTSS-105-01-L-DV-P-TR Features


Flex Stack, HTSS series


HTSS-105-01-L-DV-P-TR Applications


There are a lot of Samtec Inc.
HTSS-105-01-L-DV-P-TR Rectangular Connectors applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
