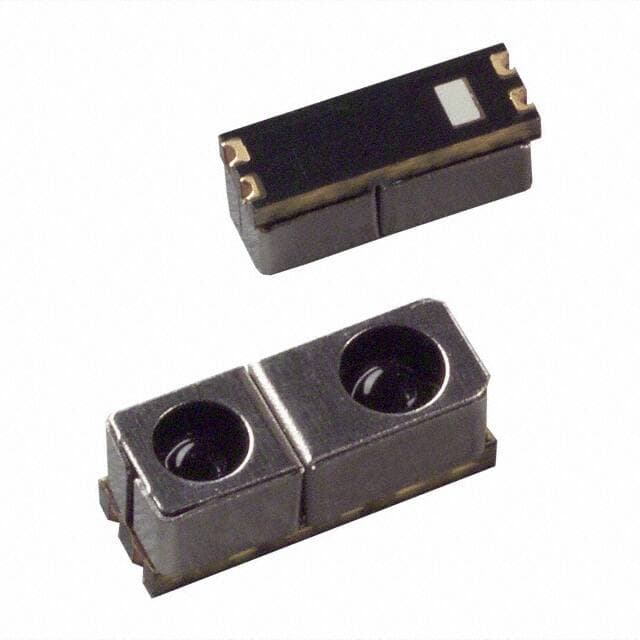

BROADCOM HSDL-9100-021

Manufacturer No:

HSDL-9100-021

Manufacturer:

BROADCOM

Package:

4-SMD

Description:

Photoelectric Sensor, 0mm Min, 60mm Max, 0.01mA, Rectangular, Surface Mount, 2.70 MM HEIGHT, ROHS COMPLIANT, SMD-2

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HSDL-9100-021 information

BROADCOM HSDL-9100-021 technical specifications, attributes, parameters and parts with similar specifications to BROADCOM HSDL-9100-021.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
BROADCOM INC

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Factory Lead Time
16 Weeks

Samacsys Manufacturer
Avago Technologies

Body Breadth
2.35 mm

Body Height
2.7 mm

Body Length or Diameter
6.9 mm

Measurement Range-Max (mm)
60 mm

Mounting Feature
SURFACE MOUNT

Operating Current-Max
100 mA

Operating Temperature-Max
85 °C

Operating Temperature-Min
-40 °C

Output Range
0.01mA

Output Type
ANALOG CURRENT

Package Shape/Style
RECTANGULAR

Response Time
6 µs

Sensors/Transducers Type
PROXIMITY SENSOR,PHOTOELECTRIC

Supply Voltage-Max
1.65 V

Supply Voltage-Min
1.5 V

Surface Mount
YES

Download datasheets and manufacturer documentation for BROADCOM HSDL-9100-021.

PCN Design/Specification:

broadcomlimited-hsdl9100021-pcndesignspecification-4925.pdf

The Broadcom HSDL-9100-021 is a reflective analog output proximity sensor designed for use in a variety of applications. It features a wide operating voltage range of 2.7V to 5.5V, a low power consumption of only 1.2mA, and a fast response time of 10µs. The sensor is capable of detecting objects up to a distance of 10mm and has a wide sensing angle of up to 90°. It is also highly reliable and has a long life expectancy of up to 10 million cycles.

The Broadcom HSDL-9100-021 is ideal for use in a variety of applications such as industrial automation, robotics, and medical equipment. It can be used to detect objects in a variety of environments, including dark and dusty areas. It is also suitable for use in applications where a high degree of accuracy is required. The sensor is also RoHS compliant and is available in a variety of package sizes.
