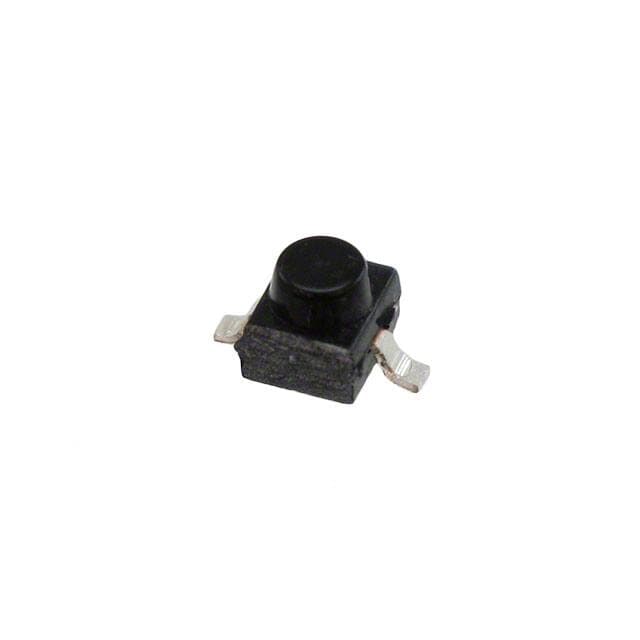

LITE-ON HSDL-5420#011

Manufacturer No:

HSDL-5420#011

Manufacturer:

LITE-ON

Package:

2-SMD, Gull Wing

Description:

Surface Mount -40°C~85°C Tape & Reel (TR) Wavelength: 875nm 2-SMD, Gull Wing 40V 0.15mm2 7.5ns

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HSDL-5420#011 information

LITE-ON HSDL-5420#011 technical specifications, attributes, parameters and parts with similar specifications to LITE-ON HSDL-5420#011.

Type
Parameter

Factory Lead Time
12 Weeks

Mounting Type
Surface Mount

Package / Case
2-SMD, Gull Wing

Shape
ROUND

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Series
HSDL-5400

Published
2001

Part Status
Active

Moisture Sensitivity Level (MSL)
2A (4 Weeks)

HTS Code
8541.40.60.50

Number of Functions
1

Configuration
SINGLE

Diode Type
PIN

Viewing Angle
56°

Response Time
7.5ns

Voltage - DC Reverse (Vr) (Max)
40V

Size
1.78mm

Wavelength
875nm

Dark Current-Max
5nA

Spectral Range
770nm ~ 1000nm

Active Area
0.15mm2

Infrared Range
YES

Current - Dark (Typ)
1nA

Reverse Breakdown Voltage-Min
40V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for LITE-ON HSDL-5420#011.

HSDL-5420#011 Overview

Photodiodes are enclosed in Tape & Reel (TR) to prevent damage. Photodiodes are packaged in 2-SMD, Gull Wing packages in order to ensure their safety. Continuous reverse-bias means the photodiodes can withstand only 40V voltage.

HSDL-5420#011 Features

Moisture Sensitivity Level (MSL): 2A (4 Weeks)
Operating Temperature: -40°C~85°C
Packaging: Tape & Reel (TR)
Diode Type: PIN
Spectral Range: 770nm ~ 1000nm
Response Time: 7.5ns
Viewing Angle: 56°

HSDL-5420#011 Applications

There are a lot of Lite-On Inc.
HSDL-5420#011 Photodiodes applications.

Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
Health Monitoring
Heart Rate Monitoring
Pulse Oximetry
Pure UV-C Monitoring
Sterilization Lamp Monitoring
