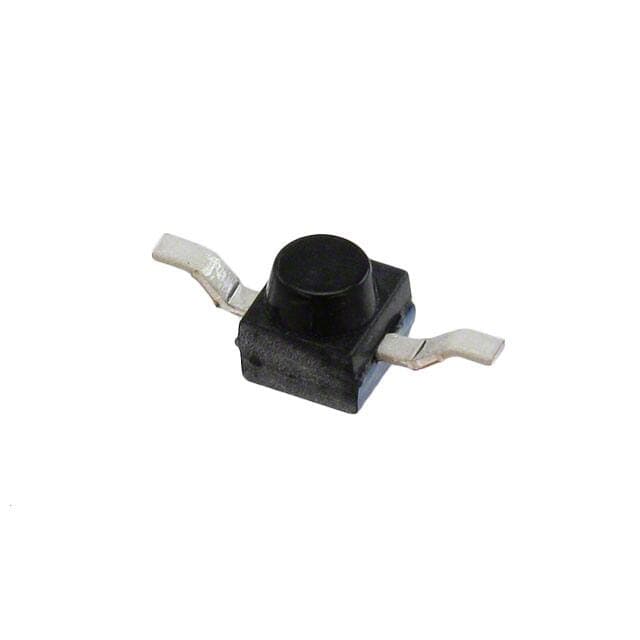

LITE-ON HSDL-5400#031

Manufacturer No:

HSDL-5400#031

Manufacturer:

LITE-ON

Package:

2-SMD, Z-Bend

Description:

Surface Mount -40°C~85°C Tape & Reel (TR) Wavelength: 875nm 2-SMD, Z-Bend 40V 0.15mm2

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HSDL-5400#031 information

LITE-ON HSDL-5400#031 technical specifications, attributes, parameters and parts with similar specifications to LITE-ON HSDL-5400#031.

Type
Parameter

Factory Lead Time
12 Weeks

Mounting Type
Surface Mount

Package / Case
2-SMD, Z-Bend

Shape
ROUND

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Series
HSDL-5400

Published
2001

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Terminal Finish
TIN

HTS Code
8541.40.60.50

Number of Functions
1

Reach Compliance Code
unknown

Configuration
SINGLE

Diode Type
PIN

Viewing Angle
110°

Voltage - DC Reverse (Vr) (Max)
40V

Size
1.53mm

Wavelength
875nm

Dark Current-Max
5nA

Spectral Range
770nm ~ 1000nm

Active Area
0.15mm2

Current - Dark (Typ)
1nA

Light Current-Nom
0.0016mA

Reverse Breakdown Voltage-Min
40V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for LITE-ON HSDL-5400#031.

HSDL-5400#031 Overview

As a protective measure, these photodiodes are packaged in the Tape & Reel (TR). To ensure safety, the photodiodes are packaged in 2-SMD, Z-Bend packages. Reverse-bias photodiodes can withstand a maximum of 40V in continuous reverse-bias mode.

HSDL-5400#031 Features

Moisture Sensitivity Level (MSL): 3 (168 Hours)
Operating Temperature: -40°C~85°C
Packaging: Tape & Reel (TR)
Diode Type: PIN
Spectral Range: 770nm ~ 1000nm
Viewing Angle: 110°

HSDL-5400#031 Applications

There are a lot of Lite-On Inc.
HSDL-5400#031 Photodiodes applications.

Infrared data transmission
Photo interrupters
Shaft encoders
Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
