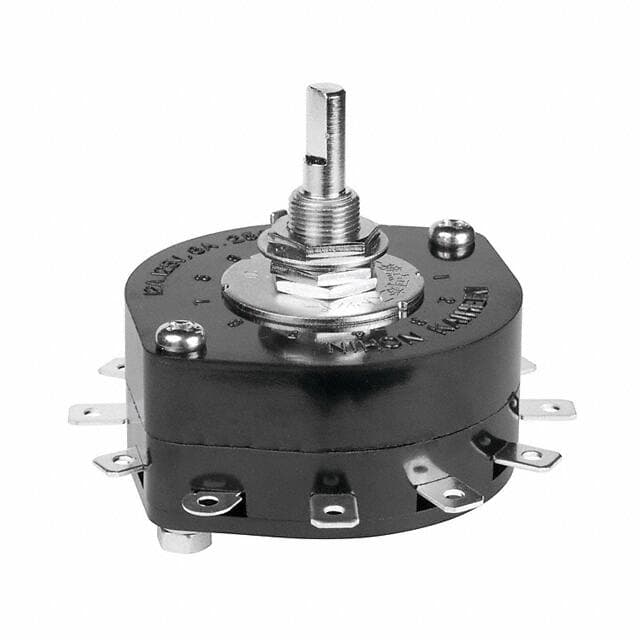

NKK Switches HS16-1N

Manufacturer No:

HS16-1N

Manufacturer:

NKK Switches

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HS16-1N information

NKK Switches HS16-1N technical specifications, attributes, parameters and parts with similar specifications to NKK Switches HS16-1N.

Type
Parameter

Factory Lead Time
7 Weeks

Contact Material
Phosphor Bronze

Contact Plating
Brass, Silver

Mount
Panel

Mounting Type
Panel Mount

Number of Pins
11

Insulation Material
PHENOLIC

Actuator Material
Brass

Series
HS

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Number of Positions
2 ~ 11

Max Operating Temperature
70°C

Min Operating Temperature
-10°C

Voltage - Rated DC
250V

Current Rating (Amps)
12A AC

Depth
71mm

Current Rating
12A

Termination Style
Solder Lug

Voltage - Rated AC
125V

Actuator Type
Flatted (6mm Dia)

Contact Style
Non-Shorting

Insulation Resistance
200MOhm

Max Voltage Rating (AC)
250V

Max Current Rating
12A

Electrical Life
7500 Cycle(s)

Throw Configuration
SP, SP11T, SP12T

Switch Type
ROTARY SWITCH

Number of Decks
1

Operating Force
55 ~ 65gfm

Illumination Type
Illuminated

Contact Current(AC)-Max
6A

Contact (AC) Max Rating R Load
6A@250VAC

Contact Timing
Non-Shorting (BBM)

Index Stops
Adjustable

Circuit per Deck
SP11T

Depth Behind Panel
31.50mm

Index Angle
30 °

Solderability
HAND

Actuator Finish
NICKEL

Length
65mm

Body Height
74.4982mm

Actuator Length
15.00mm

REACH SVHC
No SVHC
