Switchcraft Inc. HP75BNC1X
Manufacturer No:
HP75BNC1X
Manufacturer:
Package:
Description:

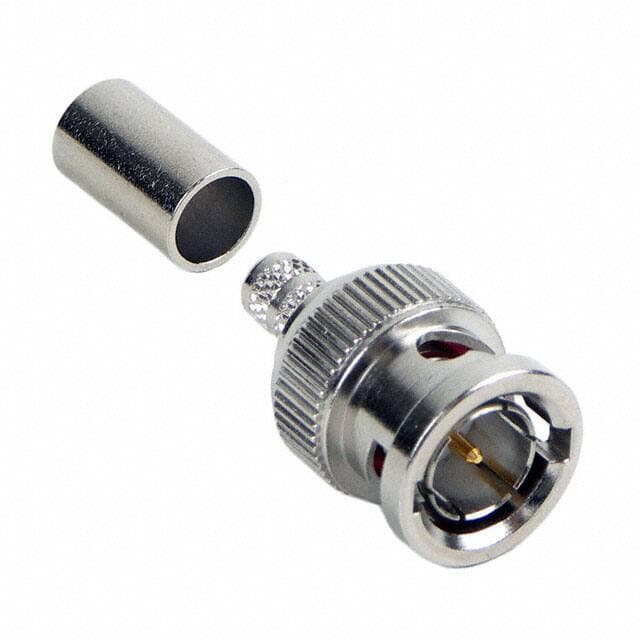

Plug, Male Pin Bayonet Lock 75Ohm Bulk BNC Crimp 1 Port -65°C~165°C
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
HP75BNC1X information
Switchcraft Inc. HP75BNC1X technical specifications, attributes, parameters and parts with similar specifications to Switchcraft Inc. HP75BNC1X.
- Type
- Parameter
- Factory Lead Time
- 12 Weeks
- Contact Plating
- Gold
- Mount
- Free Hanging
- Mounting Type
- Free Hanging (In-Line)
- Body Material
- Copper Alloy
- Center Contact Plating
- Gold
- Center Contact Material
- Copper Alloy
- Operating Temperature
- -65°C~165°C
- Packaging
- Bulk
- Series
- HP75BNC
- Published
- 2001
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- Not Applicable
- Termination
- Crimp
- Connector Type
- Plug, Male Pin
- Max Operating Temperature
- 165°C
- Min Operating Temperature
- -65°C
- Gender
- Male
- Voltage - Rated
- 500V
- Fastening Type
- Bayonet Lock
- Orientation
- Straight
- Housing Color
- Silver
- Polarity
- Standard
- Plating
- Nickel
- Connector Style
- BNC
- Number of Ports
- 1
- Body Plating
- Nickel
- Mating Cycles
- 500
- Contact Termination
- Crimp
- Includes
- 2 pcs - 1 Connector, 1 Ferrule
- Max Frequency
- 3GHz
- Body Finish
- Nickel
- Cable Group
- Belden 8241
- Shield Termination
- Crimp
- Length
- 25mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Switchcraft Inc. HP75BNC1X.
Datasheets:
HP75BNC1X Overview
The packaging contains Plug, Male Pin.This device is mounted in the Free Hanging (In-Line) position.It has been determined that a Bulk case is necessary to package the product.There is a product in the HP75BNC Series.When the temperature is below 165°C, it is best to use it.A minimum operating temperature of -65°C is required for this device.The device has 1 ports that can be used to manage a variety of tasks.Part Free Hanging is mounted to the part.As a result, the device runs at -65°C~165°C Operating Temperature.This device is capable of reaching a maximum frequency of 3GHz.
HP75BNC1X Features
HP75BNC series
HP75BNC1X Applications
There are a lot of Switchcraft Inc.
HP75BNC1X Coaxial Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
