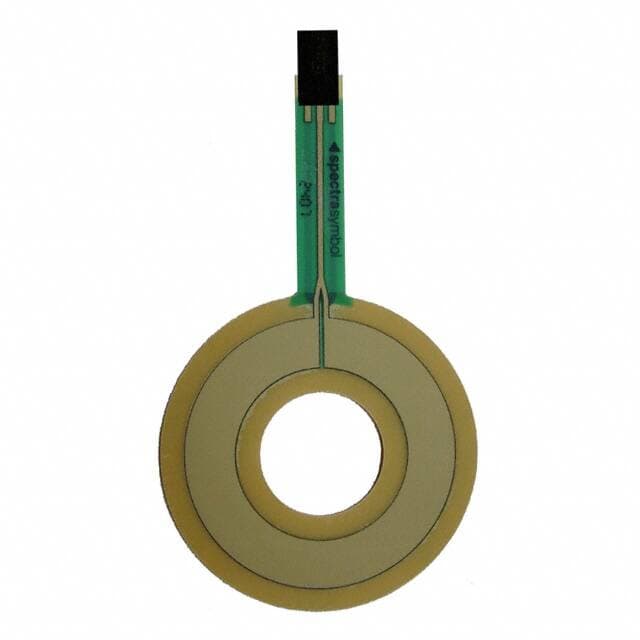

Spectra Symbol HP-R-0046-353-103-5%-RH

Manufacturer No:

HP-R-0046-353-103-5%-RH

Manufacturer:

Spectra Symbol

Package:

Circle Sensor Strip

Description:

HotPot Series For Measuring Rotary Position Connector Flexible Membrane - Rotary -40°C~85°C Resistive ±5% 0° ~ 353° Resistive Circle Sensor Strip

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HP-R-0046-353-103-5%-RH information

Spectra Symbol HP-R-0046-353-103-5%-RH technical specifications, attributes, parameters and parts with similar specifications to Spectra Symbol HP-R-0046-353-103-5%-RH.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Custom

Package / Case
Circle Sensor Strip

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
HotPot

Published
2009

Tolerance
20%

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Connector

Resistance
10kOhms

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Technology
Resistive

Output
Resistive

Termination Style
Connector

Actuator Type
Flexible Membrane - Rotary

Linearity
±5%

Sensing Method
Resistive

Resistance Tolerance
±20%

For Measuring
Rotary Position

Rotation Angle - Electrical, Mechanical
0° ~ 353°

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Spectra Symbol HP-R-0046-353-103-5%-RH.

Datasheets:

spectrasymbol-hpl02001031rh-datasheets-1365.pdf

HP-R-0046-353-103-5%-RH Overview

As a preventative measure, linear position sensors are packaged in Circle Sensor Strip packages. In the Bulk package, this electronic component is contained. In order to make sure that the angle position sensors function properly, the minimum operating temperature can be set to -40°C. It is important to note, however, that angle position measuring sensors cannot operate above 85°C. The linear position measurement sensors can resist the passage of 10kOhms currents.

HP-R-0046-353-103-5%-RH Features

Operating Temperature: -40°C~85°C
HotPot Series
Package / Case: Circle Sensor Strip
Mounting Type: Custom
Resistance Tolerance: ±20%

HP-R-0046-353-103-5%-RH Applications

There are a lot of Spectra Symbol
HP-R-0046-353-103-5%-RH Angle & Linear Position Measuring Sensors applications.

Robotic joint position detection
Industrial motor position control
Medical robots and fitness equipment
Absolute Rotary Position Sensor
Steering Wheel Position Sensor
Pedal Position Sensor
Motor-shaft Position Sensor
Throttle Position Sensor
Float-Level Sensor
Ride Height Position Sensor
