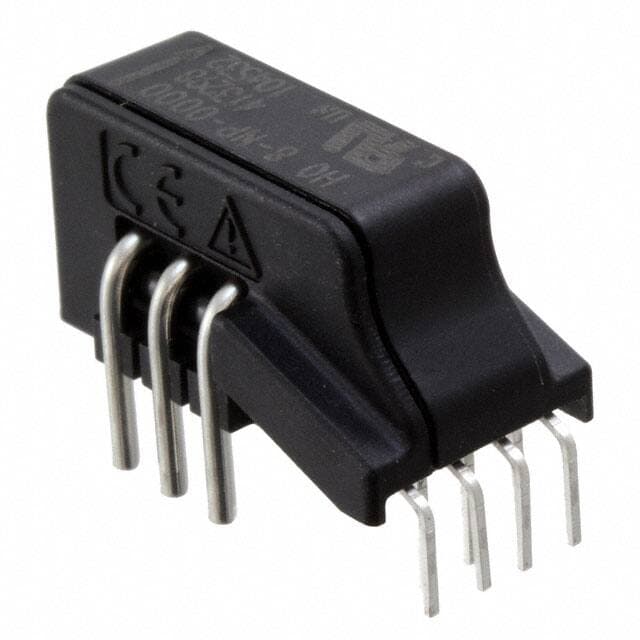

LEM HO 8-NP-0000
LEM HO 8-NP-0000

LEM HO 8-NP-0000

Manufacturer No:

HO 8-NP-0000

Manufacturer:

LEM

Package:

Module

Description:

HO-NP-0000 Series Hall Effect, Open Loop Sensor 1-Channel Bidirectional -40°C~105°C 5V DC~250kHz 8A Accuracy-±1% Linearity-±0.5%

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HO 8-NP-0000 information

LEM HO 8-NP-0000 technical specifications, attributes, parameters and parts with similar specifications to LEM HO 8-NP-0000.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Mounting Type
  • Through Hole
  • Package / Case
  • Module
  • Surface Mount
  • NO
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Tray
  • Series
  • HO-NP-0000
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • Number of Terminations
  • 13
  • Voltage - Supply
  • 5V
  • Terminal Position
  • UNSPECIFIED
  • Terminal Form
  • UNSPECIFIED
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 1
  • Supply Voltage
  • 5V
  • Frequency
  • DC~250kHz
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Output
  • Ratiometric, Voltage
  • Current - Supply (Max)
  • 25mA
  • Supply Voltage-Max (Vsup)
  • 5.5V
  • Supply Voltage-Min (Vsup)
  • 4.5V
  • Number of Channels
  • 1
  • Analog IC - Other Type
  • ANALOG CIRCUIT
  • Accuracy
  • ±1%
  • Response Time
  • 3.5μs
  • Sensor Type
  • Hall Effect, Open Loop
  • Linearity
  • ±0.5%
  • For Measuring
  • AC/DC
  • Current - Sensing
  • 8A
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for LEM HO 8-NP-0000.

HO 8-NP-0000 Overview


For safety reasons, the current sensors are packaged in Module packages. In order to protect the devices from damage, these current sensors are packaged in the Tray. These current sensors should supply no more than 25mA current. There is a termination of 13 on the current sensors. While working, these current sensors can supply voltage of 5V. Current sensors should be set to 4.5V for the minimum voltage supply. However, the voltage supplied by current sensors should not exceed 5.5V.

HO 8-NP-0000 Features


Moisture Sensitivity Level: Not Applicable
Operating Temperature: -40°C~105°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Hall Effect, Open Loop
Supply Voltage: 5V
Frequency: DC~250kHz
Sensing Current: 8A
Module Package


HO 8-NP-0000 Applications


There are a lot of LEM USA Inc.
HO 8-NP-0000 Current Sensors applications.


  • Inverter and H-bridge current measurements
  • Power factor correction
  • Overcurrent protection
  • DC and AC power monitoring
  • Closed-L oop DC- and AC-Current Sensor Modules
  • Leakage Current Sensors
  • Industrial Monitoring and Control Systems
  • Overcurrent Detection
  • Frequency, Voltage, and Solar Inverters
  • Electrical drives
