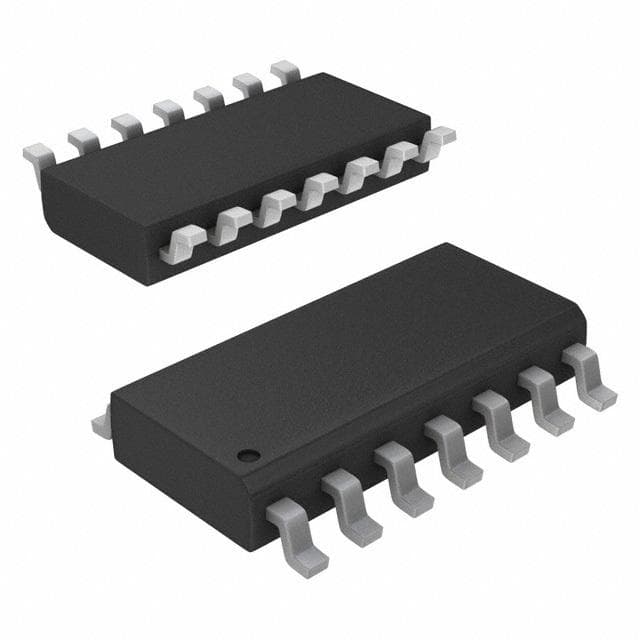

Renesas HIP6602BCB

Manufacturer No:

HIP6602BCB

Manufacturer:

Renesas

Package:

SOIC

Description:

Bulk Discontinued EAR99 Gate Drivers ICs SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HIP6602BCB information

Renesas HIP6602BCB technical specifications, attributes, parameters and parts with similar specifications to Renesas HIP6602BCB.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Packaging
Bulk

Published
2002

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
14

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
0°C

Subcategory
MOSFET Drivers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
2

Supply Voltage
12V

Terminal Pitch
1.27mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
14

Number of Outputs
4

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
13.2V

Temperature Grade
OTHER

Supply Voltage-Min (Vsup)
10.8V

Current - Output
3.7mA

Interface IC Type
HALF BRIDGE BASED MOSFET DRIVER

Output Peak Current Limit-Nom
0.73A

High Side Driver
YES

Supply Voltage1-Min
5V

Supply Voltage1-Max
12V

Length
8.65mm

Height Seated (Max)
1.75mm

Width
3.9mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas HIP6602BCB.

Datasheets:

intersil-hip6602bcb-datasheets-3147.pdf

HIP6602BCB Overview

Its SOIC package is adopted for higher flexibility.Gate drivers is packaged in the way of Bulk.There are 14 terminations to form the base of its configuration.Surface Mount is the way it takes to mount the device.Mosfet driver is specifically designed to opeate wMosfet driverh a supply voltage of 12V.HALF BRIDGE BASED MOSFET DRIVER is employed as its interface IC.Its subcategory of MOSFET Drivers contains various useful electronic components.The number of component pins is 14.There are 4 outputs integrated for its basis.The allowable maximum value of operating temperature is 85°C.The allowable minimum value of operating temperature is 0°C.Mosfet gate drivers solves the power supply problems for diverse applications based on Mosfet gate driverss power supplies of 5/1212V.The current it outputs is 3.7mA.
