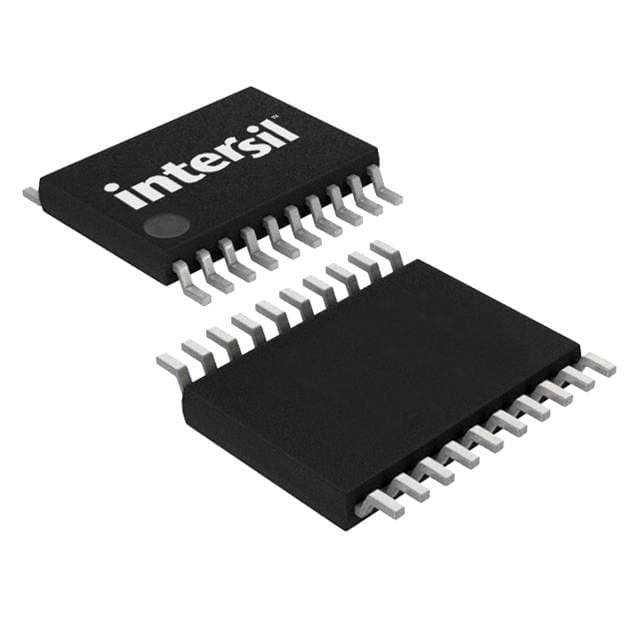

Renesas HIP6004ECVZ-T

Manufacturer No:

HIP6004ECVZ-T

Manufacturer:

Renesas

Package:

TSSOP

Description:

1.825V 260 Cel DUAL Specialized Voltage Regulator 20 Terminations TSSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HIP6004ECVZ-T information

Renesas HIP6004ECVZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas HIP6004ECVZ-T.

Type
Parameter

Mount
Surface Mount

Package / Case
TSSOP

Number of Pins
20

Published
2000

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Switching Regulator or Controllers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
40

Number of Outputs
1

Qualification Status
Not Qualified

Operating Supply Voltage
12V

Input Voltage-Nom
12V

Temperature Grade
COMMERCIAL

Current - Output
500mA

Voltage - Output
1.825V

Control Mode
VOLTAGE-MODE

Frequency - Switching
1MHz

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PUSH-PULL

Max Duty Cycle
100 %

Length
6.5mm

Width
4.4mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas HIP6004ECVZ-T.

Datasheets:

intersil-hip6004ecvzt-datasheets-0587.pdf

HIP6004ECVZ-T Overview

It supports 1 outputs in total. It is packaged in TSSOP for convenient transportation. This power supply regulator has a general volatge output of 1.825V. You can find 20 terminals of the voltage regulator. As a SWITCHING CONTROLLER regulator, the electronic part has received lots of praise. It has a Surface Mount for mounting on PCB or other boards. The power regulator has 20 pins. Other Switching Regulator or Controllers like the voltage controller play a important role in the industry. Temperature lower than 0°C is not suitable for the it. Temperature higher than 70°C is not recommended. Normal operation requires 12V operating supply voltage. This AC voltage regulator comes in a 1MHz switching frequency.

HIP6004ECVZ-T Features

SWITCHING CONTROLLER analog IC
Supply voltage: 12V
Switching at 1MHz

HIP6004ECVZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
HIP6004ECVZ-T Specialized Voltage Regulators applications.

Memory Termination Regulator for DDR, DDR2, DDR3, and Low Power DDR3/DDR4
Notebook/Desktop/Server
Telecom/Datacom
GSM Base Station
LCD-TV/PDP-TV
Copier/Printer
Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
