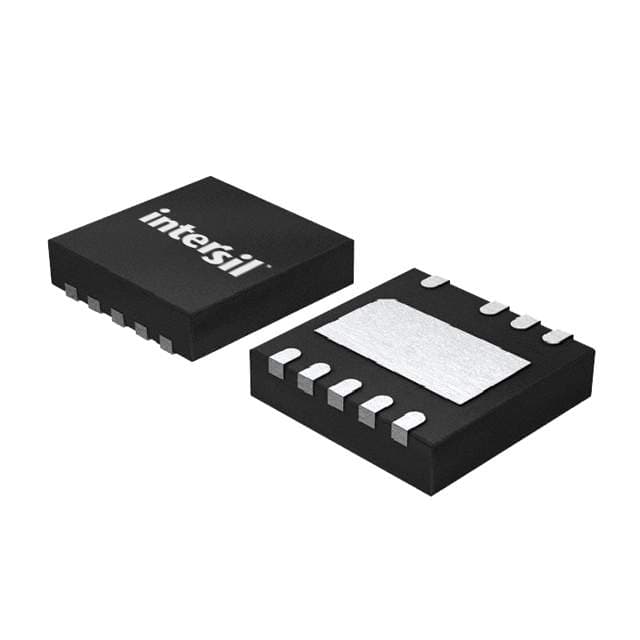

Renesas HIP2123FRTBZ-T

Manufacturer No:

HIP2123FRTBZ-T

Manufacturer:

Renesas

Package:

Description:

Active Gate Drivers ICs 2

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HIP2123FRTBZ-T information

Renesas HIP2123FRTBZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas HIP2123FRTBZ-T.

Type
Parameter

Mount
Surface Mount

Number of Pins
9

Published
2010

JESD-609 Code
e3

Part Status
Active

Number of Terminations
9

Terminal Finish
MATTE TIN

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
MOSFET Drivers

Terminal Position
QUAD

Number of Functions
1

Supply Voltage
12V

Terminal Pitch
0.8mm

Pin Count
9

Temperature Grade
AUTOMOTIVE

Max Supply Voltage
14V

Min Supply Voltage
8V

Power Dissipation-Max
3.1W

Nominal Supply Current
4mA

Max Supply Current
4mA

Current - Output
2A

Rise Time
600ns

Fall Time (Typ)
600 ns

Number of Drivers
2

Turn On Time
60 ?s

Output Peak Current Limit-Nom
2A

High Side Driver
YES

Turn Off Time
60 ?s

Length
4mm

Height Seated (Max)
0.75mm

Width
4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas HIP2123FRTBZ-T.

Datasheets:

intersil-hip2123frtbzt-datasheets-1194.pdf

intersil-hip2123frtbzt-datasheets-7911.pdf

HIP2123FRTBZ-T Overview

2 drivers are incorporated for its configuration.The configuration is based on 9 terminations.The mount method is Surface Mount.When the device is designed, it has 9 pins.Specification is for 12V supply voltage operation.There is an interface IC called HALF BRIDGE BASED MOSFET DRIVER that is employed in this device.There are several useful electronic components found in its subcategory of MOSFET Drivers.The board contains 9 pins for component connections.There is a maximum value of 125°C for the allowable operating temperature.Operating temperatures must not exceed -40°C.To ensure high stability, the supply current should be kept at 4mA.For operation, the supply voltage of 14V is the maximum value.8V is the minimum voltage required to operate it.In this case, the current output is 2A.

HIP2123FRTBZ-T Features

2 drivers
9 pins

HIP2123FRTBZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
HIP2123FRTBZ-T gate drivers applications.

RGB applications
Broadcast equipment
Active filtering
Head-up and Head mounted displays
High current laser/LED systems
LCD/LCoS/DLP portable and embedded pico projectors
Multicolor LED/laser displays
Smart Phones
Portable Navigation Devices
Portable Media Players
