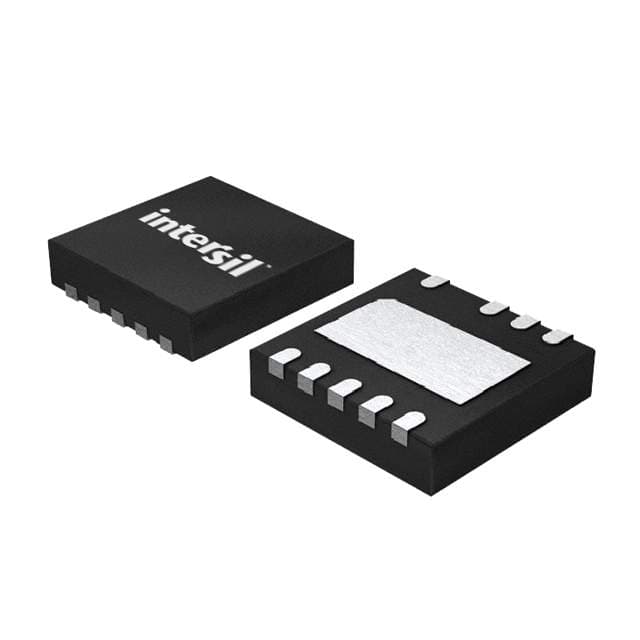

Renesas HIP2123FRTBZ

Manufacturer No:

HIP2123FRTBZ

Manufacturer:

Renesas

Package:

Description:

Active Gate Drivers ICs 2

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HIP2123FRTBZ information

Renesas HIP2123FRTBZ technical specifications, attributes, parameters and parts with similar specifications to Renesas HIP2123FRTBZ.

Type
Parameter

Mount
Surface Mount

Number of Pins
9

Published
2010

JESD-609 Code
e3

Part Status
Active

Number of Terminations
9

Terminal Finish
MATTE TIN

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
MOSFET Drivers

Terminal Position
QUAD

Number of Functions
1

Supply Voltage
12V

Terminal Pitch
0.8mm

Pin Count
9

Temperature Grade
AUTOMOTIVE

Max Supply Voltage
14V

Min Supply Voltage
8V

Power Dissipation-Max
3.1W

Nominal Supply Current
4mA

Max Supply Current
4mA

Current - Output
2A

Rise Time
600ns

Fall Time (Typ)
600 ns

Number of Drivers
2

Turn On Time
60 ?s

Output Peak Current Limit-Nom
2A

High Side Driver
YES

Turn Off Time
60 ?s

Length
4mm

Height Seated (Max)
0.75mm

Width
4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas HIP2123FRTBZ.

Datasheets:

intersil-hip2123frtbz-datasheets-0906.pdf

intersil-hip2123frtbz-datasheets-7865.pdf

HIP2123FRTBZ Overview

This configuration includes 2 drivers.Mosfet driver consists of 9 terminations as Mosfet drivers foundation.The device is mounted using Surface Mount.The pins are configured with 9 when designing the chip.The device is specifically designed to operate at 12V volts.Its interface IC is HALF BRIDGE BASED MOSFET DRIVER.There are various useful electronic components in its subcategory MOSFET Drivers.There are 9 component pins on the board.Mosfet gate drivers is permissible to operate at a temperature of 125°C.Operating temperatures can be as low as -40°C.Mosfet gate drivers is recommended to keep the supply current at 4mA to ensure greater stabilMosfet gate driversy.For operation, 14V is the maximum supply voltage.For operation, 8V is the minimum supply voltage.A current of 2A is output by the device.

HIP2123FRTBZ Features

2 drivers
9 pins

HIP2123FRTBZ Applications

There are a lot of Intersil (Renesas Electronics America)
HIP2123FRTBZ gate drivers applications.

PCMCIA applications
A/D drivers
Line drivers
Portable computers
High-speed communications
RGB applications
Broadcast equipment
Active filtering
Head-up and Head mounted displays
High current laser/LED systems
