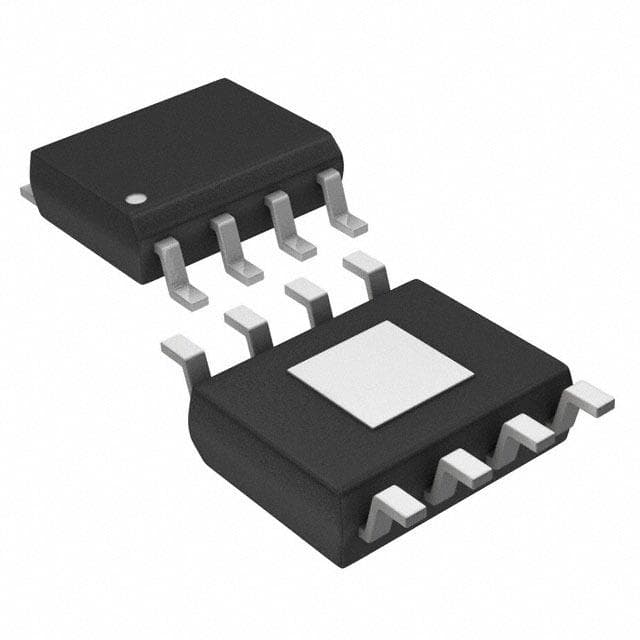

Renesas HIP2101EIB

Manufacturer No:

HIP2101EIB

Manufacturer:

Renesas

Package:

SOP

Description:

Active EAR99 Gate Drivers ICs 2 SOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HIP2101EIB information

Renesas HIP2101EIB technical specifications, attributes, parameters and parts with similar specifications to Renesas HIP2101EIB.

Type
Parameter

Mount
Surface Mount

Package / Case
SOP

Number of Pins
8

Published
2001

JESD-609 Code
e0

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
150°C

Min Operating Temperature
-55°C

Subcategory
MOSFET Drivers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
12V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Qualification Status
Not Qualified

Max Output Current
2A

Temperature Grade
AUTOMOTIVE

Max Supply Voltage
14V

Power Dissipation-Max
3.1W

Nominal Supply Current
3mA

Power Dissipation
3.1W

Max Supply Current
3mA

Current - Output
2A

Propagation Delay
43 ns

Turn On Delay Time
13 ns

Rise Time
600ns

Fall Time (Typ)
600 ns

Turn-Off Delay Time
13 ns

Interface IC Type
HALF BRIDGE BASED MOSFET DRIVER

Number of Drivers
2

Turn On Time
0.056 µs

Output Peak Current Limit-Nom
2A

High Side Driver
YES

Turn Off Time
0.056 µs

Width
3.9mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas HIP2101EIB.

Datasheets:

intersil-hip2101eib-datasheets-1123.pdf

HIP2101EIB Overview

For greater flexibility, the SOP package is adopted.This configuration includes 2 drivers.Mosfet driver consists of 8 terminations as Mosfet drivers foundation.The device is mounted using Surface Mount.The pins are configured with 8 when designing the chip.The device is specifically designed to operate at 12V volts.Its interface IC is HALF BRIDGE BASED MOSFET DRIVER.2A is the maximum output current.There are various useful electronic components in its subcategory MOSFET Drivers.Mosfet gate drivers is permissible to operate at a temperature of 150°C.Operating temperatures can be as low as -55°C.Mosfet gate drivers is recommended to keep the supply current at 3mA to ensure greater stabilMosfet gate driversy.For operation, 14V is the maximum supply voltage.For operation, 9V is the minimum supply voltage.A current of 2A is output by the device.

HIP2101EIB Features

2 drivers
8 pins

HIP2101EIB Applications

There are a lot of Intersil (Renesas Electronics America)
HIP2101EIB gate drivers applications.

PCMCIA applications
A/D drivers
Line drivers
Portable computers
High-speed communications
RGB applications
Broadcast equipment
Active filtering
Head-up and Head mounted displays
High current laser/LED systems
