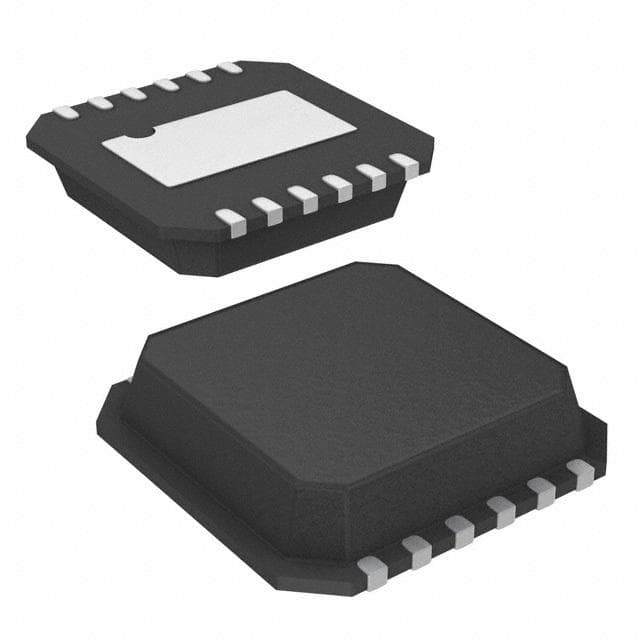

Renesas HIP2100IR4ZT

Manufacturer No:

HIP2100IR4ZT

Manufacturer:

Renesas

Package:

DFN

Description:

Active EAR99 Gate Drivers ICs 2 DFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HIP2100IR4ZT information

Renesas HIP2100IR4ZT technical specifications, attributes, parameters and parts with similar specifications to Renesas HIP2100IR4ZT.

Type
Parameter

Mount
Surface Mount

Package / Case
DFN

Number of Pins
12

Published
2001

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
12

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
150°C

Min Operating Temperature
-40°C

Subcategory
MOSFET Drivers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
12V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Qualification Status
Not Qualified

Max Output Current
2A

Temperature Grade
AUTOMOTIVE

Min Supply Voltage
9V

Nominal Supply Current
2.5mA

Max Supply Current
2.5mA

Current - Output
2A

Turn On Delay Time
8 ns

Rise Time
10ns

Fall Time (Typ)
10 ns

Turn-Off Delay Time
8 ns

Interface IC Type
HALF BRIDGE BASED MOSFET DRIVER

Number of Drivers
2

Turn On Time
0.045 µs

Output Peak Current Limit-Nom
2A

High Side Driver
YES

Turn Off Time
0.045 µs

Length
4mm

Height Seated (Max)
0.9mm

Width
4mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas HIP2100IR4ZT.

Datasheets:

intersil-hip2100ir4zt-datasheets-1009.pdf

HIP2100IR4ZT Overview

In order to increase flexibility, the package DFN is used.Configuration is supported by 2 drivers.The configuration starts with 12 terminations.In this case, Surface Mount indicates how the device is to be mounted.As a result, it is configured with 12 pins when it is designed.With a supply voltage of 12V, it is designed to operate.Mosfet driver utilizes the interface IC HALF BRIDGE BASED MOSFET DRIVER.In the maximum case, the output current can be 2A volts.There are several useful electronic components within its subcategory MOSFET Drivers.150°C is the maximum operating temperature that can be tolerated.Temperatures below -40°C are allowable as a minimum.For higher stability, the supply current should be kept at 2.5mA.For operation, it requires a voltage of 14V.This device operates at 9V as the minimum supply voltage.As a result, it outputs a 2A current.

HIP2100IR4ZT Features

2 drivers
12 pins

HIP2100IR4ZT Applications

There are a lot of Intersil (Renesas Electronics America)
HIP2100IR4ZT gate drivers applications.

High-speed communications
RGB applications
Broadcast equipment
Active filtering
Head-up and Head mounted displays
High current laser/LED systems
LCD/LCoS/DLP portable and embedded pico projectors
Multicolor LED/laser displays
Smart Phones
Portable Navigation Devices
