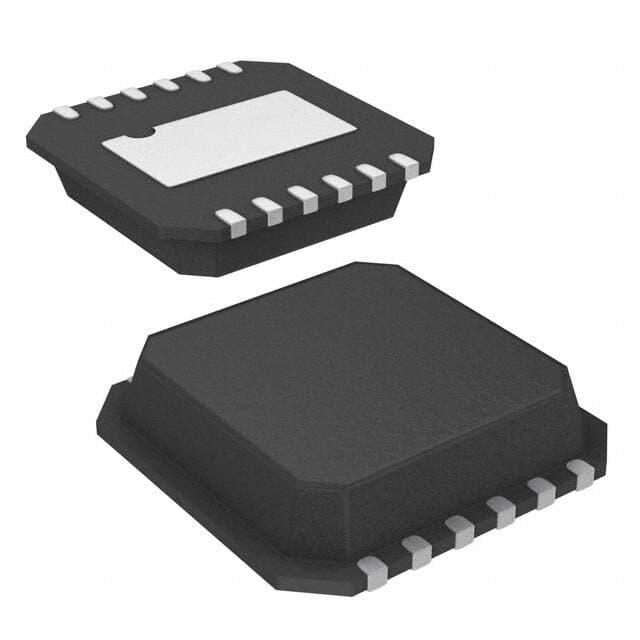

Rochester HIP2100IR4

Manufacturer No:

HIP2100IR4

Manufacturer:

Rochester

Package:

12-VFDFN Exposed Pad

Description:

Surface Mount Tube Obsolete Gate Drivers ICs Non-Inverting 2 114V V 12-VFDFN Exposed Pad Half-Bridge

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HIP2100IR4 information

Rochester HIP2100IR4 technical specifications, attributes, parameters and parts with similar specifications to Rochester HIP2100IR4.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
12-VFDFN Exposed Pad

Surface Mount
YES

Operating Temperature
-55°C~150°C TJ

Packaging
Tube

JESD-609 Code
e0

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
12

Terminal Finish
TIN LEAD

Voltage - Supply
9V~14V

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
12V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
12

Qualification Status
COMMERCIAL

Input Type
Non-Inverting

Rise / Fall Time (Typ)
10ns 10ns

Channel Type
Independent

Turn On Time
0.045 µs

Output Peak Current Limit-Nom
2A

Driven Configuration
Half-Bridge

Gate Type
N-Channel MOSFET

Current - Peak Output (Source, Sink)
2A 2A

High Side Driver
YES

Logic Voltage - VIL, VIH
4V 7V

Turn Off Time
0.045 µs

High Side Voltage - Max (Bootstrap)
114V

Length
4mm

Height Seated (Max)
0.9mm

Width
4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Rochester HIP2100IR4.

Datasheets:

rochesterelectronicsllc-hip2100ir4-datasheets-9781.pdf

HIP2100IR4 Overview

The 12-VFDFN Exposed Pad package offers greater flexibility.Tube is the form of the package.For its configuration, it incorporates 2 drivers.There is a mounting bracket in the way of Surface Mount.Using a 9V~14V supply voltage, gate drivers is capable of demonstrating Gate driverss superiorGate driversy.This gate type has a N-Channel MOSFET design.-55°C~150°C TJ is the allowed temperature range for this device.Non-Inverting is used as its input type.As a result of its configuration, it contains a maximum of 12 terminations.This device operates with 12V supply voltage.12 pins are present on the component.Maximum (Bootstrap) voltage is 114V.

HIP2100IR4 Features

Embedded in the Tube package
2 drivers
Employing a gate type of N-Channel MOSFET
High-side voltage - Max (Bootstrap) of 114V

HIP2100IR4 Applications

There are a lot of Rochester Electronics, LLC
HIP2100IR4 gate drivers applications.

Line drivers
Portable computers
High-speed communications
RGB applications
Broadcast equipment
Active filtering
Head-up and Head mounted displays
High current laser/LED systems
LCD/LCoS/DLP portable and embedded pico projectors
Multicolor LED/laser displays
