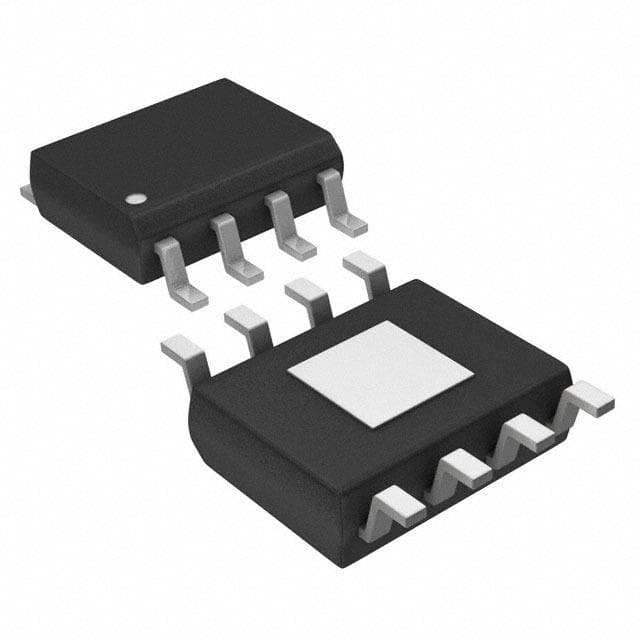

Renesas HIP2100EIBT

Manufacturer No:

HIP2100EIBT

Manufacturer:

Renesas

Package:

SOIC N

Description:

Tape & Reel (TR) Discontinued EAR99 Gate Drivers ICs SOIC N

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HIP2100EIBT information

Renesas HIP2100EIBT technical specifications, attributes, parameters and parts with similar specifications to Renesas HIP2100EIBT.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC N

Packaging
Tape & Reel (TR)

Published
2001

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
MOSFET Drivers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
12V

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
8

JESD-30 Code
R-PDSO-G8

Number of Outputs
2

Supply Voltage-Max (Vsup)
14V

Temperature Grade
AUTOMOTIVE

Supply Voltage-Min (Vsup)
9V

Interface IC Type
HALF BRIDGE BASED MOSFET DRIVER

Turn On Time
0.045 µs

Output Peak Current Limit-Nom
2A

High Side Driver
YES

Turn Off Time
0.045 µs

Length
4.89mm

Height Seated (Max)
1.68mm

Width
3.9mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas HIP2100EIBT.

Datasheets:

intersil-hip2100eibt-datasheets-0592.pdf

HIP2100EIBT Overview

Its SOIC N package provides greater flexibility.A packaging method of Tape & Reel (TR) is indicated.Its configuration starts with 8 terminations.You mount it with Surface Mount.A voltage of 12V is required for its operation.Mosfet driver employs an interface chip called HALF BRIDGE BASED MOSFET DRIVER as Mosfet drivers interface chip.In this subcategory of MOSFET Drivers, there are numerous useful electronic components.On the board, there are 8 component pins.The basis of this model has 2 outputs integrated.Mosfet gate drivers is permissible to set the operating temperature to 125°C.Mosfet gate drivers is permissible to operate at a minimum temperature of -40°C.

HIP2100EIBT Features

Embedded in the Tape & Reel (TR) package

HIP2100EIBT Applications

There are a lot of Intersil (Renesas Electronics America)
HIP2100EIBT gate drivers applications.

Active filtering
Head-up and Head mounted displays
High current laser/LED systems
LCD/LCoS/DLP portable and embedded pico projectors
Multicolor LED/laser displays
Smart Phones
Portable Navigation Devices
Portable Media Players
Motor Controls
DC-DC Converters
