Manufacturer No:

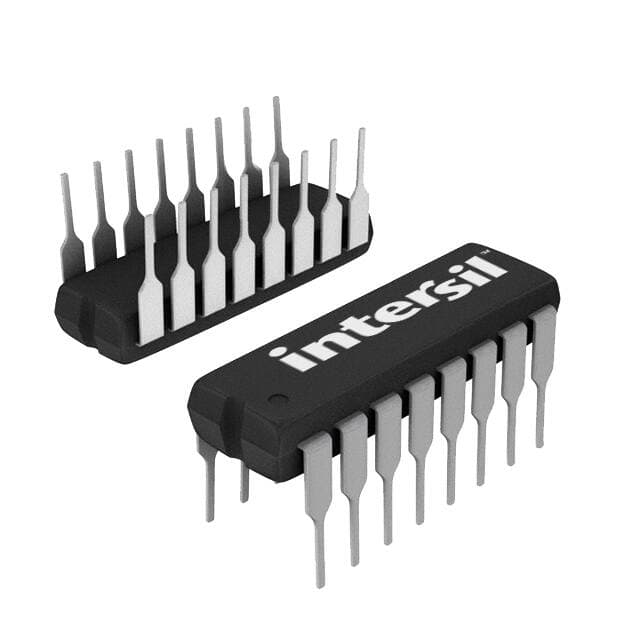

HI1-0539-5

Manufacturer:

Renesas

Package:

16-CDIP (0.300, 7.62mm)

Description:

750ns, 650ns SP4T 900Ohm DUAL Analog Switches HI-539 100pA Typ 10V 16-CDIP (0.300, 7.62mm)

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HI1-0539-5 information

Renesas HI1-0539-5 technical specifications, attributes, parameters and parts with similar specifications to Renesas HI1-0539-5.

  • Type
  • Parameter
  • Mounting Type
  • Through Hole
  • Package / Case
  • 16-CDIP (0.300, 7.62mm)
  • Surface Mount
  • NO
  • Operating Temperature
  • 0°C~75°C TA
  • Packaging
  • Tube
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 16
  • Additional Feature
  • LG=MAX
  • Technology
  • CMOS
  • Terminal Position
  • DUAL
  • Number of Functions
  • 1
  • Supply Voltage
  • 10V
  • Base Part Number
  • HI-539
  • JESD-30 Code
  • R-CDIP-T16
  • Supply Voltage-Min (Vsup)
  • 5V
  • Number of Channels
  • 4
  • Number of Circuits
  • 2
  • Analog IC - Other Type
  • DIFFERENTIAL MULTIPLEXER
  • Neg Supply Voltage-Nom (Vsup)
  • -10V
  • On-State Resistance (Max)
  • 900Ohm
  • Multiplexer/Demultiplexer Circuit
  • 4:1
  • Neg Supply Voltage-Max (Vsup)
  • -18V
  • Current - Leakage (IS(off)) (Max)
  • 100pA Typ
  • On-state Resistance Match-Nom
  • 4.5Ohm
  • Switch Circuit
  • SP4T
  • Switch Time (Ton, Toff) (Max)
  • 750ns, 650ns
  • Charge Injection
  • 10pC
  • Channel-to-Channel Matching (?Ron)
  • 4.5 ?
  • Crosstalk
  • -124dB @ 1kHz
  • Neg Supply Voltage-Min (Vsup)
  • -5V
  • Voltage - Supply, Dual (V±)
  • ±15V
  • Height Seated (Max)
  • 5.08mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Renesas HI1-0539-5.

Datasheets:

HI1-0539-5 Overview


Presented in 16-CDIP (0.300, 7.62mm), this electrical component is convenient for overseas shipping. High reliability is ensured by the advanced packaging method Tube. Through Hole is where this multiplexer is located. Multiplexer and demultiplexer circuits have a number 4:1. Increasing operating temperature to around 0°C~75°C TA. Totally, there are 16 terminations. A high-quality output is provided by the electrical component's 4 channels. It is safe to turn on and run the electronic component with a 10V voltage supply. A SP4T switching circuit is used for these analog switches. The circuits in this analogue multiplexer number 2. Using the HI-539 search parameter, you can discover variants of the switch. It is integrated with a DIFFERENTIAL MULTIPLEXER analog IC. This electrical component also includes additional features such as LG=MAX. This digital multiplexer requires 5V voltage as a minimum supply voltage.

HI1-0539-5 Features


4 Channels
Switch Circuit: SP4T
Additional Features: LG=MAX


HI1-0539-5 Applications


There are a lot of Renesas Electronics America Inc.
HI1-0539-5 Analog Switches & Multiplexers ICs applications.


  • Precision data acquisition
  • Battery-powered systems
  • Sample-and-hold systems
  • Communication systems
  • Data Acquisition Systems
  • Relay Replacement
  • Battery Powered Systems
  • Existing multiplexer applications (both fault-protected and nonfault-protected)
  • New designs requiring multiplexer functions
  • Cellular phones
