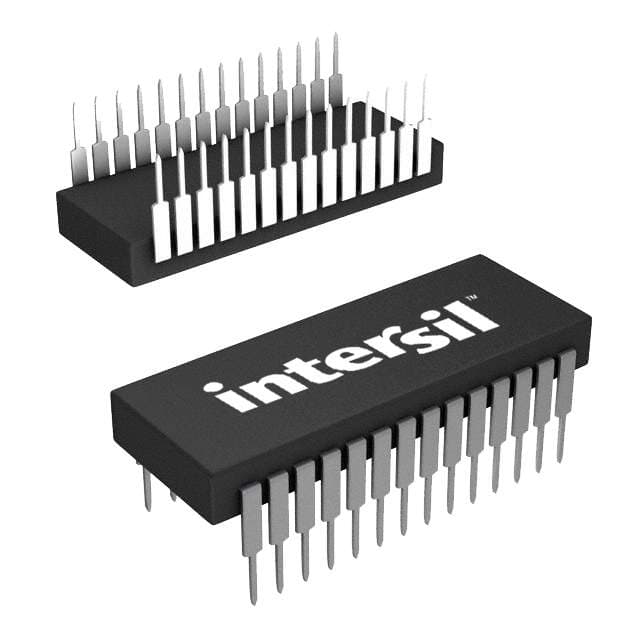

Renesas HI1-0507-2

Manufacturer No:

HI1-0507-2

Manufacturer:

Renesas

Package:

CDIP

Description:

Analog Switches BREAK-BEFORE-MAKE 28 Pins 15V CDIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HI1-0507-2 information

Renesas HI1-0507-2 technical specifications, attributes, parameters and parts with similar specifications to Renesas HI1-0507-2.

Type
Parameter

Mount
Through Hole

Package / Case
CDIP

Number of Pins
28

Packaging
Bulk

Published
1999

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Number of Terminations
28

ECCN Code
EAR99

Resistance
300Ohm

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Technology
CMOS

Number of Functions
1

Supply Voltage
15V

Terminal Pitch
2.54mm

Pin Count
28

Operating Supply Voltage
15V

Temperature Grade
MILITARY

Number of Channels
1

Max Supply Voltage
25V

Power Dissipation-Max
60mW

Turn On Delay Time
500 ns

Logic Function
Multiplexer

Supply Type
Dual

Supply Current-Max (Isup)
3mA

Neg Supply Voltage-Nom (Vsup)
-15V

Turn-Off Delay Time
500 ns

Max Dual Supply Voltage
22V

Min Dual Supply Voltage
10V

Off-state Isolation-Nom
68 dB

On-state Resistance Match-Nom
9Ohm

Switching
BREAK-BEFORE-MAKE

Signal Current-Max
0.02A

Height Seated (Max)
5.92mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas HI1-0507-2.

Datasheets:

intersil-hi105072-datasheets-2141.pdf

intersil-hi105072-datasheets-2058.pdf

HI1-0507-2 Overview

Due to its CDIP packaging, the electronic part is convenient for international shipping. High reliability is achieved by using advanced packaging method Bulk. A total of 28 terminations have been recorded. The electronic part delivers high-quality output through its 1 channels. Turning on and running the electrical part should be easy with a 15V voltage supply. Electronic part bodies are injected with 28 pins. Internally, this switch multiplexer has a resistance of 300Ohm. You can find the functions of the 28 pins in the datasheets. It is normally recommended that users do not supply the multiplexer with voltages higher than 25V. Digital switch that provides Dual power at a cost-effective price. The switch device would be able to operate with 1.5mA current. It is possible to supply this switch device with dual voltages. However, it is not advisable to exceed 22V. If you are using a dual power supply, you should attach at least 10V. It can operate from 15V operating voltages. Temperatures over 125°C should not be allowed for the multiplexer to operate.

HI1-0507-2 Features

1 Channels
1.5mA Supply Current

HI1-0507-2 Applications

There are a lot of Intersil (Renesas Electronics America)
HI1-0507-2 Analog Switches & Multiplexers ICs applications.

Medical
Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
