Manufacturer No:

HI-8192PCTF

Manufacturer:

Holt Integrated Circuits Inc.

Package:

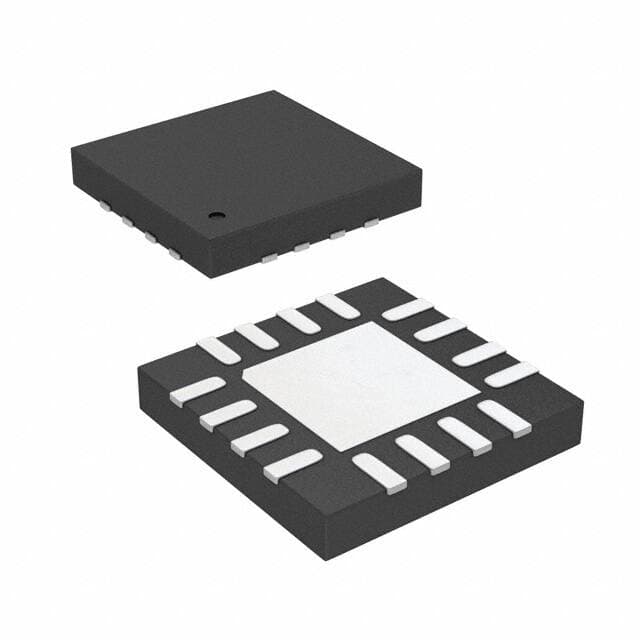

16-WQFN Exposed Pad, CSP

Description:

35ns, 20ns (Typ) SPST - NO/NC 17Ohm QUAD Analog Switches 16 Pins 5nA 5V 16-WQFN Exposed Pad, CSP

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HI-8192PCTF information

Holt Integrated Circuits Inc. HI-8192PCTF technical specifications, attributes, parameters and parts with similar specifications to Holt Integrated Circuits Inc. HI-8192PCTF.

  • Type
  • Parameter
  • Factory Lead Time
  • 6 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 16-WQFN Exposed Pad, CSP
  • Surface Mount
  • YES
  • Operating Temperature
  • -55°C~125°C TA
  • Packaging
  • Tube
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 16
  • ECCN Code
  • EAR99
  • Resistance
  • 17Ohm
  • Terminal Finish
  • Matte Tin (Sn)
  • Technology
  • CMOS
  • Terminal Position
  • QUAD
  • Terminal Form
  • NO LEAD
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 4
  • Supply Voltage
  • 5V
  • Terminal Pitch
  • 0.8mm
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Pin Count
  • 16
  • JESD-30 Code
  • S-PQCC-N16
  • Number of Channels
  • 1
  • Voltage - Supply, Single/Dual (±)
  • 3.3V~15V ±3.3V~15V
  • On-State Resistance (Max)
  • 17Ohm
  • Multiplexer/Demultiplexer Circuit
  • 1:1
  • Off-state Isolation-Nom
  • 65 dB
  • Current - Leakage (IS(off)) (Max)
  • 5nA
  • Channel Capacitance (CS(off), CD(off))
  • 5pF
  • Switch Circuit
  • SPST - NO/NC
  • Switch Time (Ton, Toff) (Max)
  • 35ns, 20ns (Typ)
  • Charge Injection
  • 4pC
  • Switch-on Time-Max
  • 55ns
  • Switch-off Time-Max
  • 25ns
  • Length
  • 5mm
  • Height Seated (Max)
  • 0.8mm
  • Width
  • 5mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Holt Integrated Circuits Inc. HI-8192PCTF.

Datasheets:

HI-8192PCTF Overview


As the electronic part is packed in 16-WQFN Exposed Pad, CSP, international shipping is convenient. A high level of reliability can be achieved through the use of an advanced packaging method Tube. The multiplexer is located in Surface Mount. 1:1 is the number of circuits in the multiplexer and demultiplexer. Operating temperature extended to -55°C~125°C TA. Total terminations are 16. The electronic part provides high-quality output because it has 1 channels. Powered by a 5V voltage supply, the electrical part should be switched on and run. The electrical component body receives 16 pins. Circuits based on SPST - NO/NC switching are used to construct these analog switch ics. There are 4 circuits in this switch device. An switch multiplexer with 17Ohm internal resistance has a value of 17Ohm.

HI-8192PCTF Features


1 Channels
Switch Circuit: SPST - NO/NC


HI-8192PCTF Applications


There are a lot of Holt Integrated Circuits Inc.
HI-8192PCTF Analog Switches & Multiplexers ICs applications.


  • Imaging
  • Ultrasound
  • Audio and video switching
  • Automatic test equipment
  • Precision data acquisition
  • Battery-powered systems
  • Sample-and-hold systems
  • Communication systems
  • Data Acquisition Systems
  • Relay Replacement
