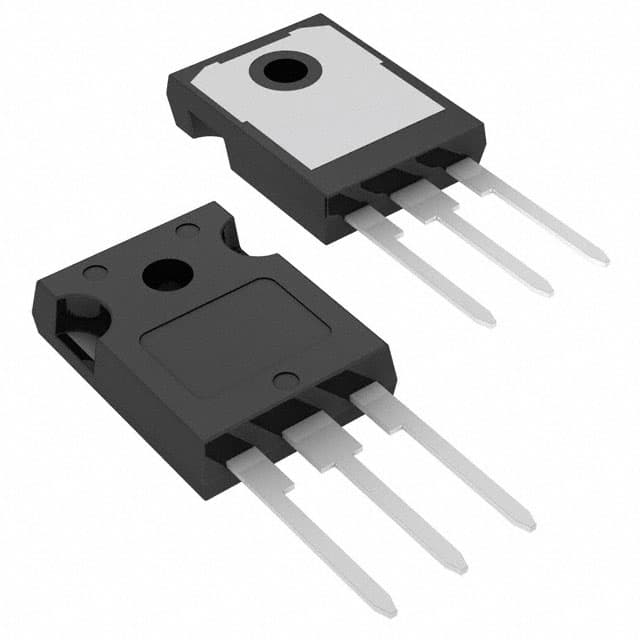

ONSEMI HGTG20N60A4D

Manufacturer No:

HGTG20N60A4D

Manufacturer:

ONSEMI

Package:

TO-247-3

Description:

600V, SMPS IGBT

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HGTG20N60A4D information

ONSEMI HGTG20N60A4D technical specifications, attributes, parameters and parts with similar specifications to ONSEMI HGTG20N60A4D.

Type
Parameter

VCE(sat) Typ (V)
1.8

Eoff Typ (mJ)
-

Trr Typ (ns)
-

Short Circuit Withstand (µs)
-

Container Type
TUBE

Container Qty.
450

V(BR)CES Typ (V)
600

MSL Temp (°C)
0

IC Max (A)
40

Eon Typ (mJ)
-

Irr Typ (A)
-

EAS Typ (mJ)
-

Package Type
TO-247-3

Case Outline
340CK

MSL Type
NA

PD Max (W)
-

Co-Packaged Diode
Yes

Family
-

VF Typ (V)
-

Gate Charge Typ (nC)
-

Download datasheets and manufacturer documentation for ONSEMI HGTG20N60A4D.

Datasheet:

ee3506c7a509308c8398d9fe354caac6.pdf

Package Drawing:

d9bfb84b240ee385ab61b5dd070dac5b.pdf

The HGTG20N60A4D is a MOS gated high voltage switching device combining the best features of MOSFETs and bipolar transistors. This device has the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor. The much lower on-state voltage drop varies only moderately between 25°C and 150°C. The IGBT used is the development type TA49339. The diode used in anti-parallel is the development type TA49372.This IGBT is ideal for many high voltage switching applications operating at high frequencies where low conduction losses are essential. This device has been optimized for high frequency switch mode power supplies.

Application

Other Industrial

Feature

<100kHz Operation At 390V, 20A
200kHz Operation At 390V, 12A
600V Switching SOA Capability
Typical Fall Time . . . . . . . . . . . . . . . . .55ns at T_J = 125&°C
Low Conduction Loss
Temperature Compensating SABER™ Model
