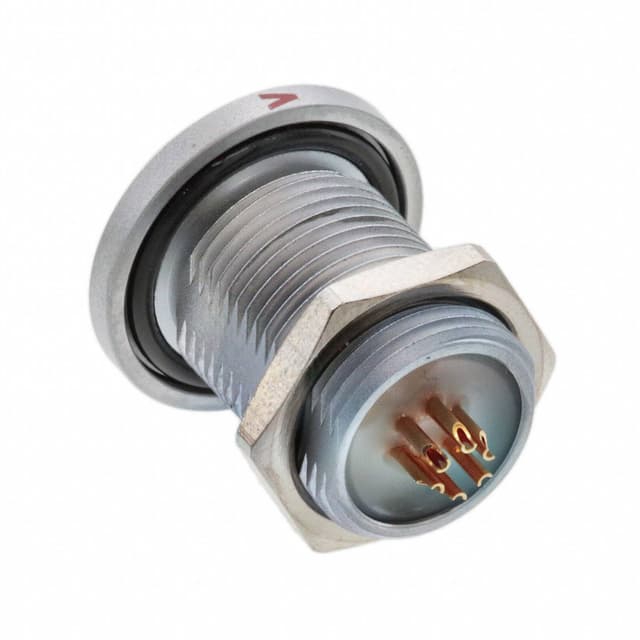

LEMO HGP.00.250.CTLP
LEMO HGP.00.250.CTLP

LEMO HGP.00.250.CTLP

Manufacturer No:

HGP.00.250.CTLP

Manufacturer:

LEMO

Package:

Description:

Receptacle, Female Socket Push-Pull 50Ohm Bulk NIM-CAMAC CD/N 549 Solder Cup 1 Port Polytetrafluoroethylene (PTFE) -20°C~100°C

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HGP.00.250.CTLP information

LEMO HGP.00.250.CTLP technical specifications, attributes, parameters and parts with similar specifications to LEMO HGP.00.250.CTLP.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Mount
  • Bulkhead, Panel, Rear Side Nut
  • Mounting Type
  • Panel Mount
  • Mounting Feature
  • Bulkhead - Rear Side Nut
  • Insulation Material
  • POLYTETRAFLUORO ETHYLENE
  • Dielectric Material
  • Polytetrafluoroethylene (PTFE)
  • Body Material
  • Brass
  • Center Contact Plating
  • Gold
  • Center Contact Material
  • Bronze
  • Operating Temperature
  • -20°C~100°C
  • Packaging
  • Bulk
  • Series
  • 00
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Connector Type
  • Receptacle, Female Socket
  • Voltage - Rated
  • 700V
  • Fastening Type
  • Push-Pull
  • Contact Finish - Mating
  • NOT SPECIFIED
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Ingress Protection
  • IP68 - Dust Tight, Waterproof
  • Housing Color
  • Silver
  • Impedance
  • 50Ohm
  • Connector Style
  • NIM-CAMAC CD/N 549
  • Number of Ports
  • 1
  • Mating Cycles
  • 5000
  • Contact Termination
  • Solder Cup
  • Includes
  • 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
  • Body Finish
  • Chrome
  • Shield Termination
  • Solder
  • RoHS Status
  • RoHS Compliant
  • Ratings
  • Dust Tight, IP68, Waterproof

Download datasheets and manufacturer documentation for LEMO HGP.00.250.CTLP.

Datasheets:

Environmental Information:

PCN Assembly/Origin:

ConflictMineralStatement:

HGP.00.250.CTLP Overview


The product comes in a package of Receptacle, Female Socket.This device's mounting type is Panel Mount.It's packaged in a Bulk case.00 Series product.For managing a variety of tasks, it has 1 ports.Bulkhead, Panel, Rear Side Nut is mounting the part.Running in -20°C~100°C Operating Temperature.

HGP.00.250.CTLP Features


00 series


HGP.00.250.CTLP Applications


There are a lot of LEMO
HGP.00.250.CTLP Coaxial Connectors applications.


  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
