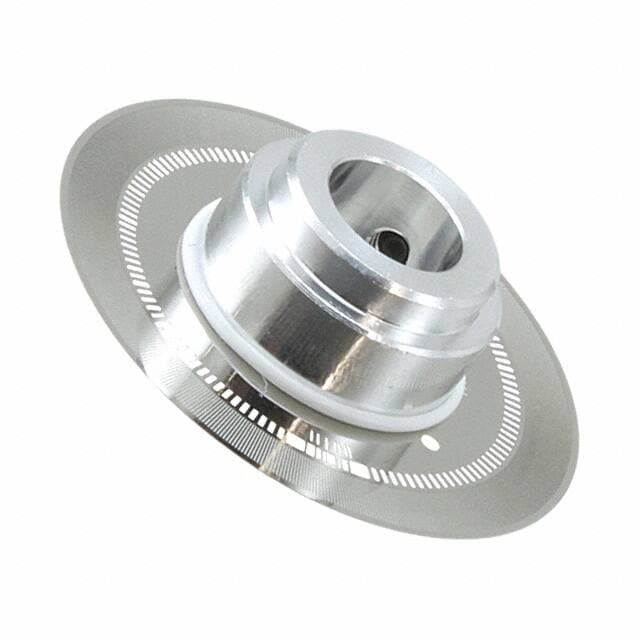

BROADCOM HEDS-5120#A06

Manufacturer No:

HEDS-5120#A06

Manufacturer:

BROADCOM

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HEDS-5120#A06 information

BROADCOM HEDS-5120#A06 technical specifications, attributes, parameters and parts with similar specifications to BROADCOM HEDS-5120#A06.

Type
Parameter

Factory Lead Time
12 Weeks

Contact Material
Glass

Surface Mount
YES

Mounting Feature
SURFACE MOUNT

Material
Metal

Series
HEDS

Published
2006

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Max Operating Temperature
100°C

Min Operating Temperature
-40°C

HTS Code
8543.90.88.80

Subcategory
Optical Position Encoders

Frequency
100kHz

Operating Supply Voltage
5V

Number of Channels
2

Accessory Type
Codewheel

Optoelectronic Device Type
OPTICAL CODE WHEELS

Built in Switch
No

Pulses per Revolution
500

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for BROADCOM HEDS-5120#A06.

PCN Packaging:

broadcomlimited-heds5120a03-pcnpackaging-0718.pdf

HEDS-5120#A06 Overview

Accessories can be set to operate at a maximum temperature of 100°C. To ensure normal operation of the angle position measuring sensors, the operating temperature should not fall below -40°C. When the accessories are operating normally, the supply voltage should be 5V. It is important that the accessories pass 100kHz frequency so that they will work properly. In the accessory, there are 2 transmission channels. Ensure it works by keeping the pulses per revolution at 500.

HEDS-5120#A06 Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
HEDS Series
Max Operating Temperature: 100°C
Min Operating Temperature: -40°C
Operating Supply Voltage: 5V

HEDS-5120#A06 Applications

There are a lot of Broadcom Limited
HEDS-5120#A06 Accessories applications.

Power plant control equipment
Medical equipment
Transportation equipment (vehicles, trans, ships, etc.)
Traffic signal equipment
Disaster prevention I crime prevention equipment
Data-processing equipment
Sensing tiny moving objects
Detecting a passing glass
Detecting transparent film
Detecting wafer cassette in cleaning tank
