Chip Quik Inc. HDR100IMP40M-G-RA-TH

Manufacturer No:

HDR100IMP40M-G-RA-TH

Manufacturer:

Package:

Description:

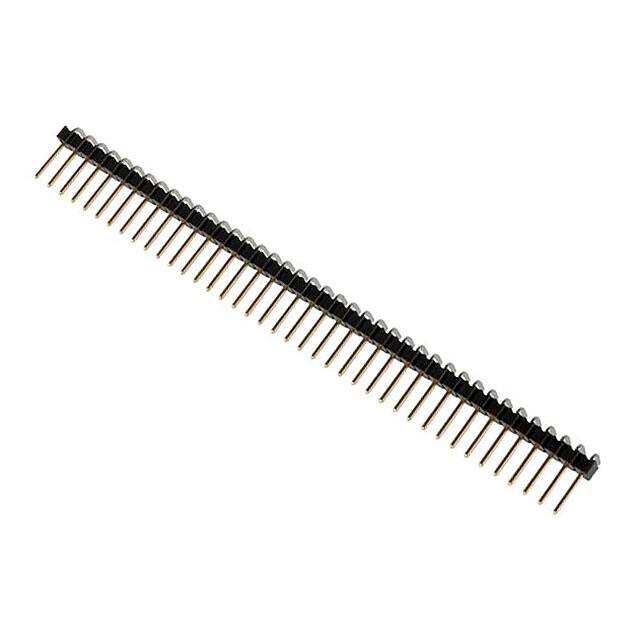

Proto-Advantage Series 1-Row Header, Breakaway Wire Wrap Bulk Through Hole, Right Angle Gold 40-Position Board to Board 0.098 2.50mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HDR100IMP40M-G-RA-TH information

Chip Quik Inc. HDR100IMP40M-G-RA-TH technical specifications, attributes, parameters and parts with similar specifications to Chip Quik Inc. HDR100IMP40M-G-RA-TH.

Type
Parameter

Factory Lead Time
4 Weeks

Mounting Type
Through Hole, Right Angle

Number of Pins
40

Contact Shape
Square

Packaging
Bulk

Series
Proto-Advantage

Published
2011

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Wire Wrap

Connector Type
Header, Breakaway

Number of Positions
40

Number of Rows
1

Fastening Type
Push-Pull

Contact Finish - Mating
Gold

Contact Type
Male Pin

Insulation Height
0.098 2.50mm

Style
Board to Board

Number of Positions Loaded
All

Pitch - Mating
0.100 2.54mm

Contact Length - Post
0.118 3.00mm

Shrouding
Unshrouded

Contact Finish - Post
Gold

Contact Length - Mating
0.236 6.00mm

Download datasheets and manufacturer documentation for Chip Quik Inc. HDR100IMP40M-G-RA-TH.

Datasheets:

chipquikinc-hdr100imp40mgrath-datasheets-1048.pdf

HDR100IMP40M-G-RA-TH Overview

The packaging contains Header, Breakaway.There is a Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Bulk.Product number Proto-Advantage belongs to the Proto-Advantage Series.A 40 pin is provided on the device.
