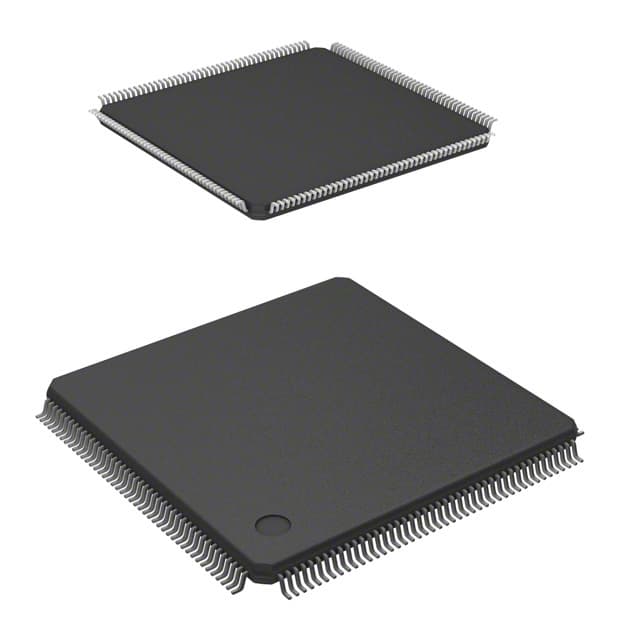

Renesas HD64F7065AF60V

Manufacturer No:

HD64F7065AF60V

Manufacturer:

Renesas

Package:

176-LQFP

Description:

256KB 256K x 8 FLASH SH-2 DSP 32-Bit Microcontroller SuperH® SH7060 Series HD64F7065 176 Pin 60MHz 3V 176-LQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HD64F7065AF60V information

Renesas HD64F7065AF60V technical specifications, attributes, parameters and parts with similar specifications to Renesas HD64F7065AF60V.

Type
Parameter

Factory Lead Time
20 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
176-LQFP

Number of Pins
176

Operating Temperature
-20°C~75°C TA

Packaging
Tray

Series
SuperH® SH7060

Published
2006

JESD-609 Code
e6

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
176

Terminal Finish
Tin/Bismuth (Sn/Bi)

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
3V

Terminal Pitch
0.5mm

Frequency
60MHz

Time@Peak Reflow Temperature-Max (s)
20

Base Part Number
HD64F7065

Operating Supply Voltage
3.3V

Interface
EBI/EMI, SCI

Memory Size
256kB

Oscillator Type
Internal

Number of I/O
110

RAM Size
8K x 8

Voltage - Supply (Vcc/Vdd)
3V~3.6V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC

Core Processor
SH-2 DSP

Peripherals
DMA, POR, PWM, WDT

Program Memory Type
FLASH

Core Size
32-Bit

Program Memory Size
256KB 256K x 8

Connectivity
EBI/EMI, SCI

Bit Size
32

Data Converter
A/D 8x10b; D/A 2x8b

Has ADC
YES

DMA Channels
YES

Data Bus Width
32b

PWM Channels
YES

DAC Channels
YES

Number of Timers/Counters
2

Address Bus Width
26

Download datasheets and manufacturer documentation for Renesas HD64F7065AF60V.

Datasheets:

renesas-hd64f7065af60v-datasheets-4516.pdf

renesas-hd64f7065af60v-datasheets-4517.pdf

ConflictMineralStatement:

nec-dn1c100m1s-conflictmineralstatement-8243.pdf

HD64F7065AF60V Overview

Packaged in a 176-LQFP format, this MCU is available in a compact size. There are 110 I/Os on the Microcontroller. It is important to note that the Microcontroller has a Surface Mount mounting type. 32-Bit core is the basis for this Microcontroller. This program has a type of memory called FLASH for this MCU's program memory. Temperatures in this range are operated by this Microcontroller. The SuperH® SH7060 series includes this electrical component. There is 256KB 256K x 8 bytes of program memory in MCU, which corresponds to the size of the program. With a SH-2 DSP Core processor, MCU is equipped with the latest technology available. This is a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. During the manufacturing process, 176 terminations were applied to the IC chip. 32-bits are used in Microcontroller. The MCU chip's supply output is 3V volts. Currently, MCU chip has YES DMA channels. 256kB memory size belongs to the Chip part. Alternatives can be found by looking at the base part number HD64F7065. In the case of 60MHz frequency operation, it can perform efficiently. There are YES PWM channels on the device. The chip has 176 pins. The clock has 2 timers/counters to keep track of the time. 176 pins are counted on this board. There are 3 UART channels available on this board.

HD64F7065AF60V Features

176-LQFP package
Mounting type of Surface Mount

HD64F7065AF60V Applications

There are a lot of Renesas Electronics America
HD64F7065AF60V Microcontroller applications.

Equipment control
Instrument control
Toys
Robots
Radio
Television
Heater/Fan
Calculator
Kindle
Christmas lights
