Renesas HD64F7046F50V
Renesas HD64F7046F50V

Renesas HD64F7046F50V

Manufacturer No:

HD64F7046F50V

Manufacturer:

Renesas

Package:

80-BQFP

Description:

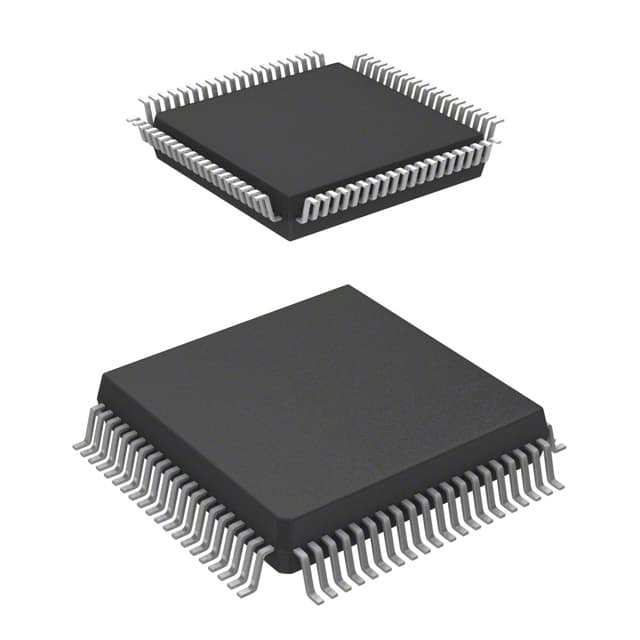

256KB 256K x 8 FLASH SH-2 32-Bit Microcontroller SuperH® SH7046 Series HD64F7046 80 Pin 50MHz 5V 80-BQFP

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HD64F7046F50V information

Renesas HD64F7046F50V technical specifications, attributes, parameters and parts with similar specifications to Renesas HD64F7046F50V.

  • Type
  • Parameter
  • Factory Lead Time
  • 20 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 80-BQFP
  • Number of Pins
  • 80
  • Operating Temperature
  • -20°C~75°C TA
  • Packaging
  • Tray
  • Series
  • SuperH® SH7046
  • Published
  • 2005
  • JESD-609 Code
  • e6
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 80
  • Terminal Finish
  • Tin/Bismuth (Sn/Bi)
  • Technology
  • CMOS
  • Terminal Position
  • QUAD
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Supply Voltage
  • 5V
  • Terminal Pitch
  • 0.65mm
  • Frequency
  • 50MHz
  • Time@Peak Reflow Temperature-Max (s)
  • 20
  • Base Part Number
  • HD64F7046
  • Operating Supply Voltage
  • 5V
  • Memory Size
  • 256kB
  • Oscillator Type
  • Internal
  • Number of I/O
  • 42
  • RAM Size
  • 12K x 8
  • Voltage - Supply (Vcc/Vdd)
  • 4V~5.5V
  • uPs/uCs/Peripheral ICs Type
  • MICROCONTROLLER, RISC
  • Core Processor
  • SH-2
  • Peripherals
  • POR, PWM, WDT
  • Program Memory Type
  • FLASH
  • Core Size
  • 32-Bit
  • Program Memory Size
  • 256KB 256K x 8
  • Connectivity
  • SCI
  • Bit Size
  • 32
  • Data Converter
  • A/D 12x10b
  • Access Time
  • 50 ?s
  • Has ADC
  • YES
  • DMA Channels
  • NO
  • Data Bus Width
  • 32b
  • PWM Channels
  • YES
  • DAC Channels
  • NO
  • Number of Timers/Counters
  • 7
  • Number of UART Channels
  • 2

Download datasheets and manufacturer documentation for Renesas HD64F7046F50V.

Datasheets:

ConflictMineralStatement:

HD64F7046F50V Overview


80-BQFP-packages are available. There are 42 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 32-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -20°C~75°C TA for this Microcontroller. An electrical component of this type belongs to the SuperH® SH7046 series. This program memory has a size of 256KB 256K x 8, which indicates what the size of the program memory is. SH-2 Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER, RISC power supply/socket/peripheral ICs category. This chip has a total of 80 terminations on MCU chip. You get a 32-bit size. This Microcontroller chip is powered by 5V volts. There are NO DMA channels on this Microcontroller chip. The part has a memory size of 256kB. The base part number HD64F7046 provides alternatives. This device is extremely efficient when operated at a frequency of 50MHz. Using the PWM channel YES, the device works with the motor. In this chip, 80 pins can be accessed. Using the timer/counter system, it has 7 timers/counters. It has 80 pins in total. With 2 UART channels, it has all the features you may need.

HD64F7046F50V Features


80-BQFP package
Mounting type of Surface Mount


HD64F7046F50V Applications


There are a lot of Renesas Electronics America
HD64F7046F50V Microcontroller applications.


  • Television
  • Heater/Fan
  • Calculator
  • Kindle
  • Christmas lights
  • 3D printers
  • Washing machine
  • Microwave ovens
  • Home appliances
  • Home video and audio
