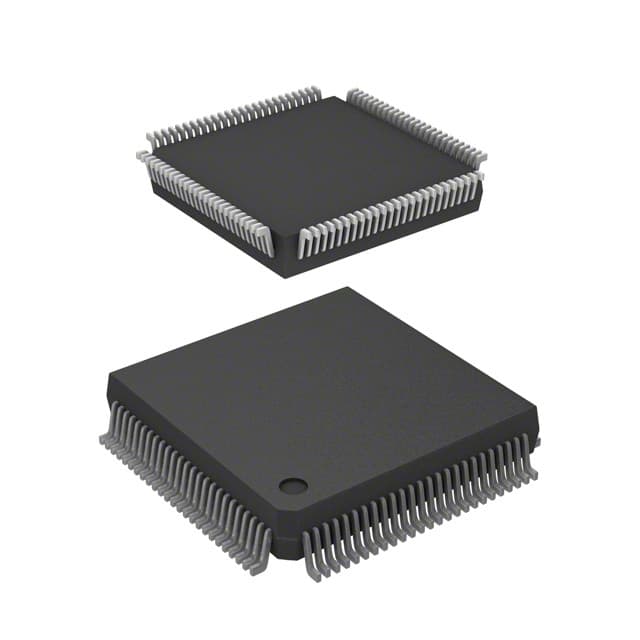

Renesas HD64F7017F28V

Manufacturer No:

HD64F7017F28V

Manufacturer:

Renesas

Package:

112-BQFP

Description:

128KB 128K x 8 FLASH SH-2 32-Bit Microcontroller SuperH® SH7010 Series HD64F7017 112 Pin 28.7MHz 5V 112-BQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HD64F7017F28V information

Renesas HD64F7017F28V technical specifications, attributes, parameters and parts with similar specifications to Renesas HD64F7017F28V.

Type
Parameter

Factory Lead Time
24 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
112-BQFP

Number of Pins
112

Operating Temperature
-20°C~75°C TA

Packaging
Tray

Series
SuperH® SH7010

Published
2003

JESD-609 Code
e6

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
112

Terminal Finish
Tin/Bismuth (Sn/Bi)

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
5V

Frequency
28.7MHz

Time@Peak Reflow Temperature-Max (s)
20

Base Part Number
HD64F7017

Pin Count
112

Interface
EBI/EMI, SCI

Memory Size
128kB

Oscillator Type
Internal

Number of I/O
74

RAM Size
4K x 8

Voltage - Supply (Vcc/Vdd)
4.5V~5.5V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC

Core Processor
SH-2

Peripherals
DMA, PWM, WDT

Program Memory Type
FLASH

Core Size
32-Bit

Program Memory Size
128KB 128K x 8

Connectivity
EBI/EMI, SCI

Bit Size
32

Data Converter
A/D 8x10b

Access Time
28.7 μs

Has ADC
YES

DMA Channels
YES

Data Bus Width
32b

PWM Channels
YES

DAC Channels
NO

Number of Timers/Counters
5

Address Bus Width
22

Download datasheets and manufacturer documentation for Renesas HD64F7017F28V.

ConflictMineralStatement:

nec-dn1c100m1s-conflictmineralstatement-8243.pdf

HD64F7017F28V Overview

Packaged in a 112-BQFP format. A total of 74 I/Os are on the Microcontroller. Surface Mount is the mounting type of the Microcontroller that is attached to the panel. This Microcontroller is based on a core called 32-Bit. The type of its program memory is FLASH. In this Microcontroller, temperature is controlled within the range -20°C~75°C TA. A SuperH® SH7010 series electrical component is used in this application. This program has a program memory of 128KB 128K x 8 bytes, which is the size of the program. With a SH-2 Core Processor, Microcontroller is fast and efficient. ICs for MICROCONTROLLER, RISC uPs/uCs/peripheral parts. There are 112 terminations on the IC chip, which means there are 112 terminations on the integrated circuit chip. In addition, MCU chip comes with a 32-bit size. Microcontroller chip has outputs of 5V volts. The system has YES channels for DMA communication. There is 128kB memory size assigned to the part. Alternatives can be found by searching through the base part number HD64F7017 to find them. At a frequency of 28.7MHz, Microcontroller can operate efficiently. This MCU Chip uses YES PWM channels to operate. Chips have 112 pins. There are 5 timers/counters in this device. In total, it has 112 pins. It has 8 channels that can be accessed through UART.
