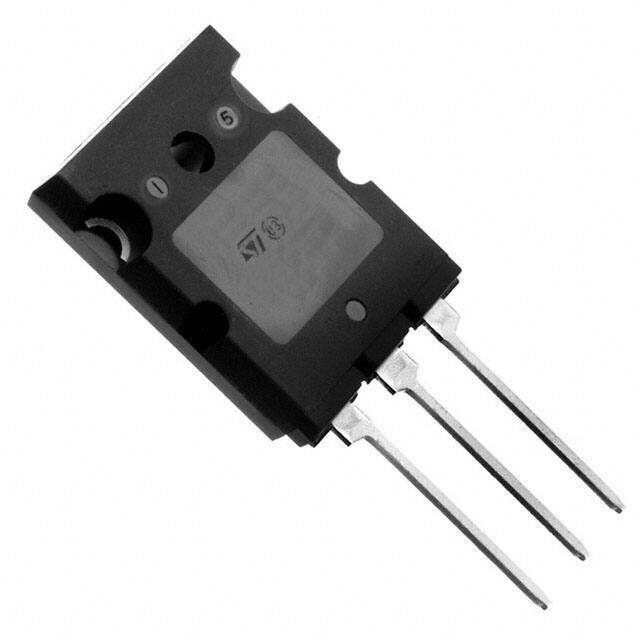

ST HD1760JL
ST HD1760JL

ST HD1760JL

Manufacturer No:

HD1760JL

Manufacturer:

ST

Package:

TO-264-3, TO-264AA

Description:

NPN 150°C TJ 200?A 1 Elements 3 Terminations SILICON NPN TO-264-3, TO-264AA Tube Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HD1760JL information

ST HD1760JL technical specifications, attributes, parameters and parts with similar specifications to ST HD1760JL.

  • Type
  • Parameter
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-264-3, TO-264AA
  • Number of Pins
  • 3
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • 150°C TJ
  • Packaging
  • Tube
  • JESD-609 Code
  • e3
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Subcategory
  • Other Transistors
  • Max Power Dissipation
  • 200W
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Reach Compliance Code
  • not_compliant
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • HD1760
  • Pin Count
  • 3
  • Qualification Status
  • Not Qualified
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Power - Max
  • 200W
  • Polarity/Channel Type
  • NPN
  • Transistor Type
  • NPN
  • Collector Emitter Voltage (VCEO)
  • 800V
  • Max Collector Current
  • 36A
  • DC Current Gain (hFE) (Min) @ Ic, Vce
  • 5 @ 18A 5V
  • Current - Collector Cutoff (Max)
  • 200?A
  • Vce Saturation (Max) @ Ib, Ic
  • 2V @ 4.5A, 18A
  • Collector Emitter Breakdown Voltage
  • 800V
  • Emitter Base Voltage (VEBO)
  • 10V
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ST HD1760JL.

Datasheets:

HD1760JL Overview


DC current gain in this device equals 5 @ 18A 5V, which is the ratio of the base current to the collector current.Saturation of VC means the Ic value is at its maximum, so vce saturation (Max) is 2V @ 4.5A, 18A.An emitter's base voltage can be kept at 10V to gain high efficiency.In extreme cases, the collector current can be as low as 36A volts.

HD1760JL Features


the DC current gain for this device is 5 @ 18A 5V
the vce saturation(Max) is 2V @ 4.5A, 18A
the emitter base voltage is kept at 10V


HD1760JL Applications


There are a lot of STMicroelectronics
HD1760JL applications of single BJT transistors.


  • Inverter
  • Interface
  • Driver
  • Muting
