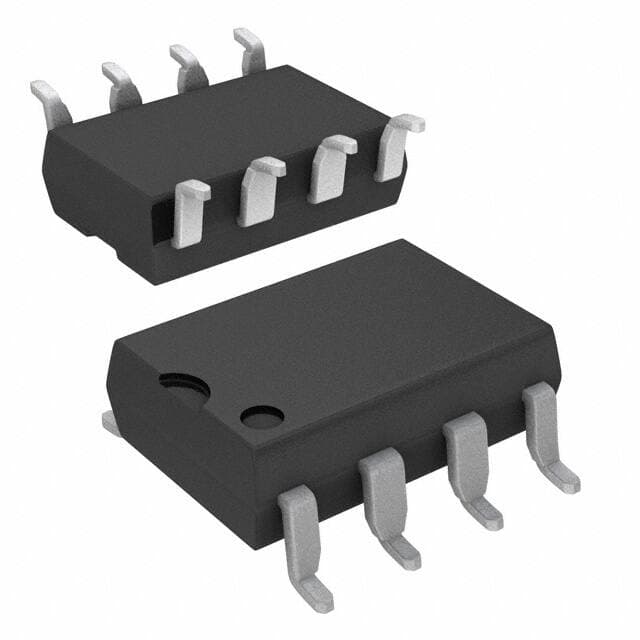

BROADCOM HCPL-7840-560E
BROADCOM HCPL-7840-560E

BROADCOM HCPL-7840-560E

Manufacturer No:

HCPL-7840-560E

Manufacturer:

BROADCOM

Package:

8-SMD, Gull Wing

Description:

Description: Isolation Amplifier, 1 Func, 3750V Isolation-Min, 100MHz Band Width, CMOS, PDSO8, ROHS COMPLIANT, SMT-8

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HCPL-7840-560E information

BROADCOM HCPL-7840-560E technical specifications, attributes, parameters and parts with similar specifications to BROADCOM HCPL-7840-560E.

  • Type
  • Parameter
  • RoHS Status
  • RoHS Compliant
  • Part Life Cycle Code
  • Active
  • Ihs Manufacturer
  • BROADCOM INC
  • Reach Compliance Code
  • compliant
  • ECCN Code
  • EAR99
  • HTS Code
  • 8542.33.00.01
  • Factory Lead Time
  • 14 Weeks
  • Samacsys Manufacturer
  • Avago Technologies
  • Amplifier Type
  • ISOLATION AMPLIFIER
  • Bandwidth (3dB)-Nom
  • 100 MHz
  • Common Mode Voltage-Max
  • 2.8 V
  • Isolation Voltage-Min
  • 3750 V
  • JESD-30 Code
  • R-PDSO-G8
  • JESD-609 Code
  • e3
  • Length
  • 9.8 mm
  • Moisture Sensitivity Level
  • 1
  • Number of Functions
  • 1
  • Number of Terminals
  • 8
  • Operating Temperature-Max
  • 85 °C
  • Operating Temperature-Min
  • -40 °C
  • Package Body Material
  • PLASTIC/EPOXY
  • Package Code
  • SOP
  • Package Equivalence Code
  • GWDIP8,.4
  • Package Shape
  • RECTANGULAR
  • Peak Reflow Temperature (Cel)
  • 260
  • Qualification Status
  • Not Qualified
  • Seated Height-Max
  • 3.7 mm
  • Supply Current-Max
  • 15.5 mA
  • Supply Voltage Limit-Max
  • 5.5 V
  • Supply Voltage-Nom (Vsup)
  • 5 V
  • Surface Mount
  • YES
  • Technology
  • CMOS
  • Temperature Grade
  • INDUSTRIAL
  • Terminal Finish
  • MATTE TIN
  • Terminal Form
  • GULL WING
  • Terminal Pitch
  • 2.54 mm
  • Terminal Position
  • DUAL
  • Voltage Gain-Max
  • 8.4
  • Voltage Gain-Min
  • 7.6
  • Width
  • 6.35 mm

Download datasheets and manufacturer documentation for BROADCOM HCPL-7840-560E.

PCN Design/Specification:

PCN Packaging:

Datasheets:

HCPL-7840-560E Overview


The linear amplifier is packaged in a 8-SMD, Gull Wing case. This is a Isolation type op amp. Linear amplifier is delivered in a Tape & Reel (TR) case. The number of terminations approaches 8. Please take in mind that this instrumentation amplifier should be run at 5V. The buffer op amp includes 8 pins. Regarding input offset voltage, op amp rates 300μV. Surface Mount is the recommended mounting type for this linear amplifier. With regard to operating temperature, this op amp functions well at -40°C~85°C. This op amp can operate from a supply current at 10.86mA. There are 1 circuits on this op amp. This op amp ic outputs Differential signals, which is one of the many benefits it has. The operating supply voltage of the buffer op amp is rated at 5V. The minimum voltage gain this buffer op amp is able to conduct is 7.6.

HCPL-7840-560E Features


supply voltage of 5V
Output Type: Differential


HCPL-7840-560E Applications


There are a lot of Broadcom Limited
HCPL-7840-560E Instrumentational OP Amps applications.


  • Inverse/same-phase proportional circuit
  • Addition operation circuits
  • Subtraction operation circuits
  • single/dual op amp sum and difference circuits
  • Integrator circuits
  • Differentiator circuits
  • Logarithmic operation circuits
  • Exponential operation circuits
  • Multiplication circuits
  • Division circuits
