NKK Switches HB15CKW01-5F-FB

Manufacturer No:

HB15CKW01-5F-FB

Manufacturer:

NKK Switches

Package:

Description:

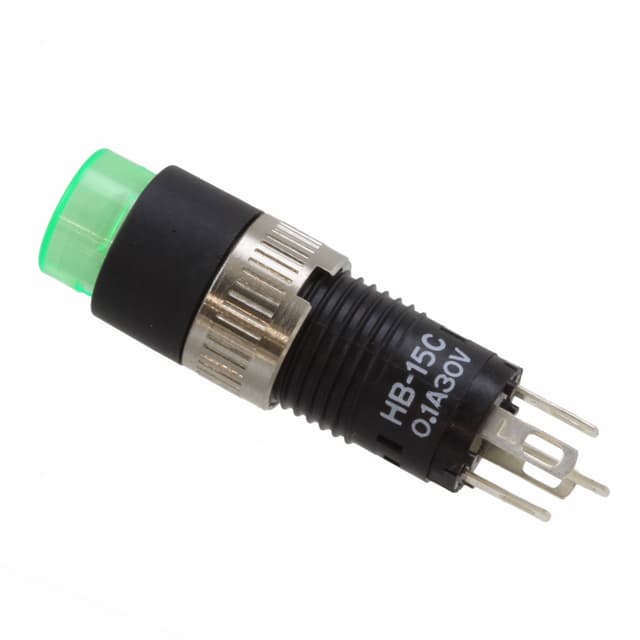

Description: Pushbutton Switch, SPDT, On-(on), Momentary, 0.1A, 30VDC, Solder Lug Terminal, Panel Mount,

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HB15CKW01-5F-FB information

NKK Switches HB15CKW01-5F-FB technical specifications, attributes, parameters and parts with similar specifications to NKK Switches HB15CKW01-5F-FB.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
NKK SWITCHES CO LTD

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8536.50.90.31

Samacsys Manufacturer
NKK Switches

Actuator Length
0.138 inch

Actuator Travel
2.9972 mm

Actuator Type
PUSHBUTTON

Body Color
BLACK

Bushing Diameter
0.315 inch

Bushing Type
M8P0.75

Center Contact Material
PHOSPHOR BRONZE

Center Contact Plating
SILVER

Contact (AC) Max Rating R Load
0.1A@30VAC

Contact Current(AC)-Max
0.1 A

Contact Current(DC)-Max
0.1 A

Contact (DC) Max Rating R Load
0.1A@30VDC

Contact Function
ON-(ON)

Contact Resistance
0.05 mΩ

Contact Timing
BREAK-BEFORE-MAKE

Contact Voltage(AC)-Max
30 V

Dielectric Withstand Volts
500VAC V

Electrical Life
50000 Cycle(s)

End Contact Material
PHOSPHOR BRONZE

End Contact Plating
SILVER

Housing Material
GLASS FILLED POLYAMIDE

Illumination
LED

Insulation Resistance
100000000 Ω

Insulator Material
GLASS FILLED POLYAMIDE

JESD-609 Code
e4

Mounting Feature
PANEL MOUNT

Operating Temperature-Max
50 °C

Operating Temperature-Min
-25 °C

Surface Mount
NO

Switch Action
MOMENTARY

Switch Function
SPDT

Switch Type
PUSHBUTTON SWITCH

Terminal Finish
SILVER

Terminal Length
0.197 inch

Terminal Material
PHOSPHOR BRONZE

Termination Type
SOLDER
