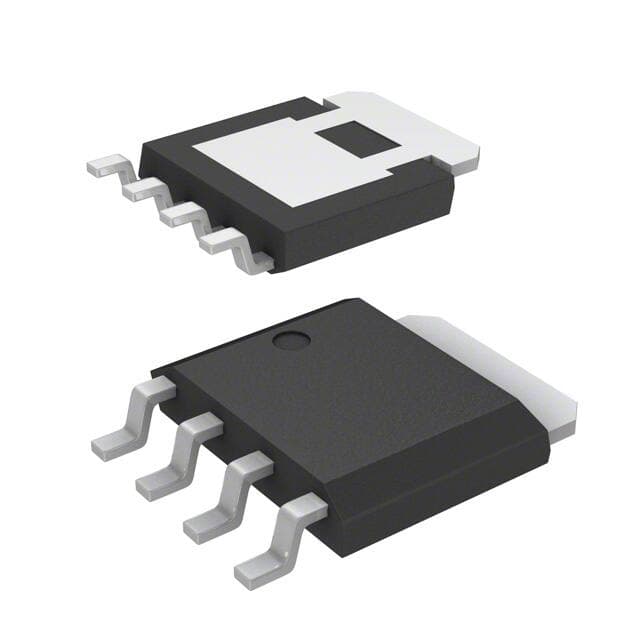

Renesas HAT2267H-EL-E
Renesas HAT2267H-EL-E

Renesas HAT2267H-EL-E

Manufacturer No:

HAT2267H-EL-E

Manufacturer:

Renesas

Package:

SC-100, SOT-669

Description:

MOSFET (Metal Oxide) N-Channel Tape & Reel (TR) 16m ? @ 12.5A, 10V ±20V 2150pF @ 10V 30nC @ 10V SC-100, SOT-669

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HAT2267H-EL-E information

Renesas HAT2267H-EL-E technical specifications, attributes, parameters and parts with similar specifications to Renesas HAT2267H-EL-E.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • SC-100, SOT-669
  • Number of Pins
  • 5
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • 150°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2005
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 4
  • ECCN Code
  • EAR99
  • Subcategory
  • FET General Purpose Power
  • Voltage - Rated DC
  • 80V
  • Technology
  • MOSFET (Metal Oxide)
  • Terminal Position
  • SINGLE
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Current Rating
  • 25A
  • Time@Peak Reflow Temperature-Max (s)
  • 20
  • Pin Count
  • 5
  • JESD-30 Code
  • R-PSSO-G4
  • Configuration
  • SINGLE WITH BUILT-IN DIODE
  • Power Dissipation-Max
  • 25W Tc
  • Operating Mode
  • ENHANCEMENT MODE
  • Turn On Delay Time
  • 7.5 ns
  • FET Type
  • N-Channel
  • Transistor Application
  • SWITCHING
  • Rds On (Max) @ Id, Vgs
  • 16m ? @ 12.5A, 10V
  • Input Capacitance (Ciss) (Max) @ Vds
  • 2150pF @ 10V
  • Current - Continuous Drain (Id) @ 25°C
  • 25A Ta
  • Gate Charge (Qg) (Max) @ Vgs
  • 30nC @ 10V
  • Rise Time
  • 9ns
  • Drive Voltage (Max Rds On,Min Rds On)
  • 6V 10V
  • Vgs (Max)
  • ±20V
  • Fall Time (Typ)
  • 5 ns
  • Turn-Off Delay Time
  • 35 ns
  • Continuous Drain Current (ID)
  • 25A
  • Gate to Source Voltage (Vgs)
  • 20V
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Renesas HAT2267H-EL-E.

Datasheets:

ConflictMineralStatement:

HAT2267H-EL-E Overview


The maximum input capacitance of this device is 2150pF @ 10V, because the input capacitance of an op amp is defined as the difference between the input terminals with one input grounded.Continuous drain current (ID) is the maximum continuous current (ID) the device can conduct, and it is 25A.Before drain current conduction can begin, the device's turn-off delay time must be charged up to full capacitance. This value is 35 ns.During device turn-on, the input capacitance must be charged for a period of time before drain current conduction can begin, so its delay time is 7.5 ns seconds.Single MOSFETs transistor is the voltage across the gate-source terminal of a transistor that determines the gate-source voltage, VGS.Using drive voltage (6V 10V), this device helps reduce its power consumption.

HAT2267H-EL-E Features


a continuous drain current (ID) of 25A
the turn-off delay time is 35 ns


HAT2267H-EL-E Applications


There are a lot of Renesas Electronics America
HAT2267H-EL-E applications of single MOSFETs transistors.


  • Micro Solar Inverter
  • DC/DC converters
  • Power Tools
  • Motor Drives and Uninterruptible Power Supples
  • Synchronous Rectification
  • Battery Protection Circuit
  • Telecom 1 Sever Power Supplies
  • Industrial Power Supplies
  • PFC stages, hard switching PWM stages and resonant switching
  • PWM stages for e.g. PC Silverbox, Adapter, LCD & PDP TV,
