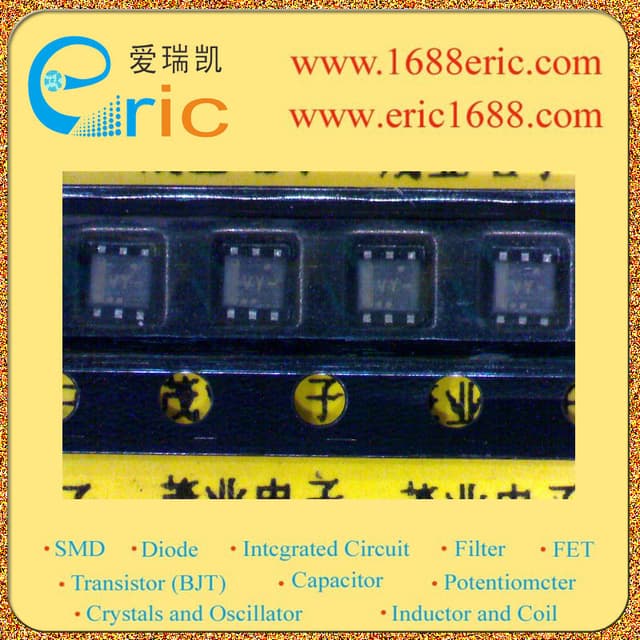

Renesas HAT1069C-EL-E
Renesas HAT1069C-EL-E

Renesas HAT1069C-EL-E

Manufacturer No:

HAT1069C-EL-E

Manufacturer:

Renesas

Package:

6-SMD, Flat Leads

Description:

MOSFET (Metal Oxide) P-Channel Tape & Reel (TR) 52m ? @ 1.5A, 4.5V ±8V 1380pF @ 10V 16nC @ 4.5V 12V 6-SMD, Flat Leads

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HAT1069C-EL-E information

Renesas HAT1069C-EL-E technical specifications, attributes, parameters and parts with similar specifications to Renesas HAT1069C-EL-E.

  • Type
  • Parameter
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 6-SMD, Flat Leads
  • Surface Mount
  • YES
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • 150°C
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2007
  • JESD-609 Code
  • e6
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 6
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Bismuth (Sn/Bi)
  • Subcategory
  • Other Transistors
  • Technology
  • MOSFET (Metal Oxide)
  • Terminal Position
  • DUAL
  • Peak Reflow Temperature (Cel)
  • 260
  • Reach Compliance Code
  • compliant
  • Time@Peak Reflow Temperature-Max (s)
  • 20
  • Pin Count
  • 6
  • JESD-30 Code
  • R-PDSO-F6
  • Qualification Status
  • Not Qualified
  • Number of Elements
  • 1
  • Power Dissipation-Max
  • 900mW Ta
  • Operating Mode
  • ENHANCEMENT MODE
  • FET Type
  • P-Channel
  • Transistor Application
  • SWITCHING
  • Rds On (Max) @ Id, Vgs
  • 52m ? @ 1.5A, 4.5V
  • Vgs(th) (Max) @ Id
  • 1.2V @ 1mA
  • Input Capacitance (Ciss) (Max) @ Vds
  • 1380pF @ 10V
  • Current - Continuous Drain (Id) @ 25°C
  • 4A Ta
  • Gate Charge (Qg) (Max) @ Vgs
  • 16nC @ 4.5V
  • Drain to Source Voltage (Vdss)
  • 12V
  • Drive Voltage (Max Rds On,Min Rds On)
  • 1.8V 4.5V
  • Vgs (Max)
  • ±8V
  • Drain Current-Max (Abs) (ID)
  • 4A
  • Drain-source On Resistance-Max
  • 0.093Ohm
  • DS Breakdown Voltage-Min
  • 12V
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Renesas HAT1069C-EL-E.

Datasheets:

HAT1069C-EL-E Overview


The input capacitance parameter, CI, is defined as the capacitance between the input terminals of an op amp with either input grounded, and this device's maximal input capacitance is 1380pF @ 10V.The drain current is the maximum continuous current the device can conduct, and the drain current of this device is 4A.Single MOSFETs transistor is recommended that the DS breakdown voltage be kept above 12V in order to maintain normal operation.Operating this transistor requires a 12V drain to source voltage (Vdss).By using drive voltage (1.8V 4.5V), this device helps reduce its overall power consumption.

HAT1069C-EL-E Features


a 12V drain to source voltage (Vdss)


HAT1069C-EL-E Applications


There are a lot of Renesas Electronics America
HAT1069C-EL-E applications of single MOSFETs transistors.


  • LCD/LED TV
  • Consumer Appliances
  • Lighting
  • Uninterruptible Power Supply
  • AC-DC Power Supply
  • Synchronous Rectification for ATX 1 Server I Telecom PSU
  • Motor drives and Uninterruptible Power Supplies
  • Micro Solar Inverter
  • DC/DC converters
