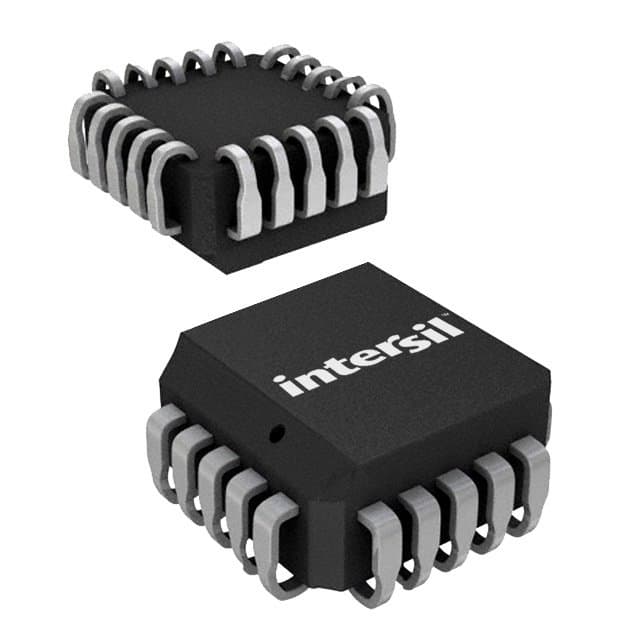

Renesas HA4P5002-5

Manufacturer No:

HA4P5002-5

Manufacturer:

Renesas

Package:

LCC

Description:

220mA per Channel 2μA Instrumentational OP Amps 20 Pins LCC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HA4P5002-5 information

Renesas HA4P5002-5 technical specifications, attributes, parameters and parts with similar specifications to Renesas HA4P5002-5.

Type
Parameter

Mount
Surface Mount

Package / Case
LCC

Packaging
Bulk

Published
1998

JESD-609 Code
e0

Part Status
Discontinued

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
75°C

Min Operating Temperature
0°C

Subcategory
Buffer Amplifiers

Technology
BIPOLAR

Terminal Position
QUAD

Terminal Form
J BEND

Number of Functions
1

Supply Voltage
15V

Reach Compliance Code
not_compliant

Pin Count
20

JESD-30 Code
S-PQCC-J20

Qualification Status
Not Qualified

Temperature Grade
COMMERCIAL EXTENDED

Number of Circuits
1

Operating Supply Current
8.3mA

Amplifier Type
BUFFER

Current - Input Bias
2μA

Output Current per Channel
220mA

Input Offset Voltage (Vos)
5mV

Neg Supply Voltage-Nom (Vsup)
-15V

Supply Voltage Limit-Max
22V

-3db Bandwidth
110MHz

Bias Current-Max (IIB) @25C
7μA

Neg Supply Voltage-Max (Vsup)
-22V

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas HA4P5002-5.

HA4P5002-5 Overview

In order to protect the op amps, a LCC case is used. There are two types of operational amplifiers in this circuit. In the case of Bulk cases, linear amplifier will be delivered. In recent months, the number of terminations has approached 20. It consists of a total of 20 pins in total. It would be helpful if you could remember that this op amp ic should be powered by an 15V battery. A type of Buffer Amplifiers buffer op amp is what this device is specifically, to be more precise. In terms of input offset voltage, operational amplifier rates 5mV. In order for this instrumentation amplifier to operate, the supply current needs to be between 8.3mA and 10 . In total, there are 1 circuits on this buffer amplifier. It is recommended that the temperature of this op amp ic should not fall below 0°C degrees Fahrenheit at any time. Linear amplifier shouldn't be used above 75°C degrees.

HA4P5002-5 Features

20 Pins
supply voltage of 15V

HA4P5002-5 Applications

There are a lot of Intersil (Renesas Electronics America)
HA4P5002-5 Instrumentational OP Amps applications.

Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
