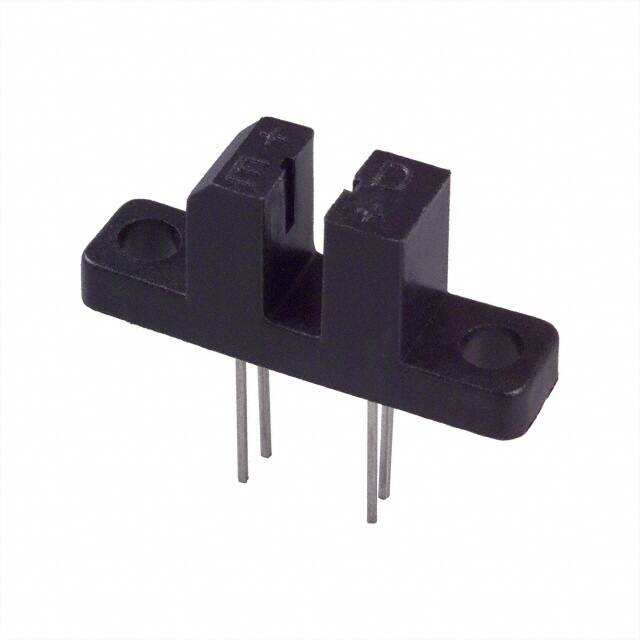

Isocom Components 2004 LTD H21A3

Manufacturer No:

H21A3

Manufacturer:

Isocom Components 2004 LTD

Package:

Slotted, PC Pins

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

H21A3 information

Isocom Components 2004 LTD H21A3 technical specifications, attributes, parameters and parts with similar specifications to Isocom Components 2004 LTD H21A3.

Type
Parameter

Factory Lead Time
2 Weeks

Mount
Screw

Mounting Type
Through Hole, Flange

Package / Case
Slotted, PC Pins

Number of Pins
4

Operating Temperature
-25°C~85°C

Packaging
Bulk

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Type
Unamplified

Number of Functions
1

Reach Compliance Code
unknown

Number of Channels
1

Output Configuration
Phototransistor

Response Time
8?s, 50?s

Rise Time
8?s

Fall Time (Typ)
50 ?s

Sensing Distance
0.118 (3mm)

Voltage - Collector Emitter Breakdown (Max)
30V

Forward Current-Max
0.06A

Current - Collector (Ic) (Max)
20mA

Sensing Method
Through-Beam

Current - DC Forward (If) (Max)
50mA

Coll-Emtr Bkdn Voltage-Min
30V

Height
11.1mm

Length
25.7mm

Width
6.6mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Isocom Components 2004 LTD H21A3.

The Isocom Components 2004 LTD H21A3 Optical Sensor is a slot type photointerrupter with a transistor output and PC pin. The device is designed to detect the presence of an object in a sensing area using an infrared light source and an infrared detector. It is ideal for applications requiring a small and precise optical sensing solution. The H21A3 features a wide viewing angle, low power consumption, and a fast response time. The sensor is capable of detecting changes in light intensity as small as 40µW/cm2. It features a high noise immunity and is RoHS compliant. The device is enclosed in a small package and is easy to mount making it perfect for small and space-constrained applications.
