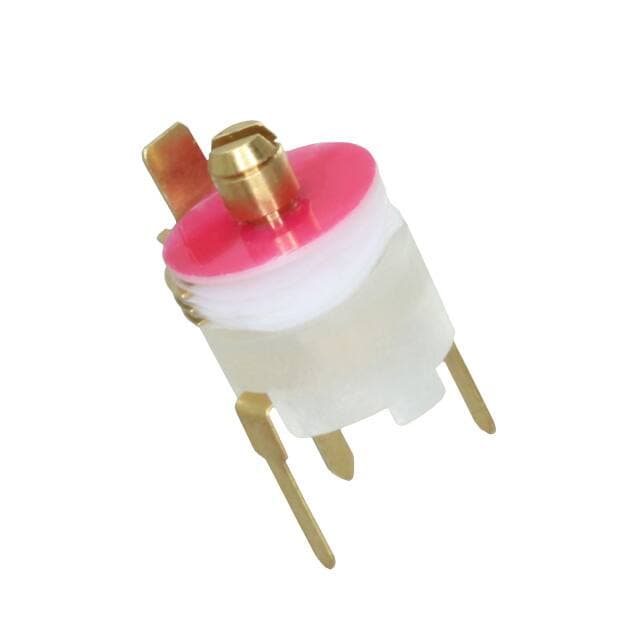

Sprague-Goodman GXE27000
Manufacturer No:
GXE27000
Manufacturer:
Package:
Description:
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
GXE27000 information
Sprague-Goodman GXE27000 technical specifications, attributes, parameters and parts with similar specifications to Sprague-Goodman GXE27000.
- Type
- Parameter
- Factory Lead Time
- 16 Weeks
- Mounting Type
- Through Hole
- Mount
- Through Hole
- Terminal Shape
- FLAT
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Published
- 2002
- Series
- FILMTRIM®
- Packaging
- Bulk
- Operating Temperature
- -40°C~125°C
- Size / Dimension
- 0.335Lx0.295W 8.50mmx7.50mm
- Feature
- General Purpose
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- ECCN Code
- EAR99
- Voltage - Rated
- 200V
- HTS Code
- 8532.30.00.90
- Capacitor Type
- VARIABLE CAPACITOR
- Rated (DC) Voltage (URdc)
- 200V
- Size Code
- 3330
- Q @ Freq
- 1500 @ 1MHz
- Adjustment Type
- Top and Bottom
- Capacitance Range
- 3.5pF~27pF
- Adjuster Orientation
- VERTICAL
- Width
- 7.7mm
- Height Seated (Max)
- 0.402 10.20mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Sprague-Goodman GXE27000.
PCN Obsolescence/ EOL:
GXE27000 Description
The GXE27000 is a Filmtrim Plastic Dielectric Capacitor.
GXE27000 Features
SMD and lead-through-hole mounting
Top, bottom and side mount models
Wide capacitance ranges
Compact sizes
Low cost for commercial/industrial applications
Linear capacitance change vs. rotation
GXE27000 Applications
Mobile Radios
Transmitters
Pagers
Instruments
Electronic Games
Wireless Security and Fire Alarms
CATV
