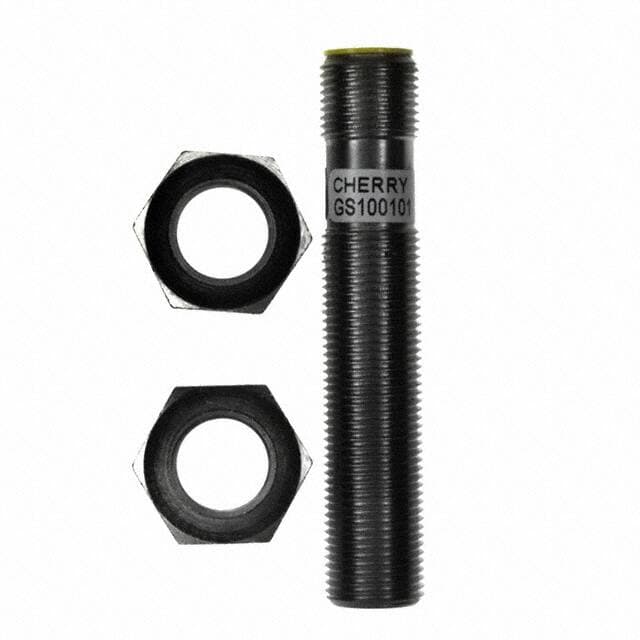

ZF Electronics GS100101
Manufacturer No:
GS100101
Manufacturer:
Package:
Barrel, Stainless Steel
Description:
Hall Effect Sensor Connector Digital Ferrous Metals, Gear Tooth -40°C~105°C TA 5V~24V Barrel, Stainless Steel
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
GS100101 information
ZF Electronics GS100101 technical specifications, attributes, parameters and parts with similar specifications to ZF Electronics GS100101.
- Type
- Parameter
- Factory Lead Time
- 18 Weeks
- Package / Case
- Barrel, Stainless Steel
- Actuator Material
- Ferrous Metals, Gear Tooth
- Operating Temperature
- -40°C~105°C TA
- Published
- 2011
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Type
- Hall Effect Sensor
- Voltage - Supply
- 5V~24V
- Frequency
- 15kHz
- Termination Style
- Connector
- Output Type
- Digital
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for ZF Electronics GS100101.
Datasheets:
GS100101 Overview
Barrel, Stainless Steel packages are used to package the magnetic position sensor modules.
GS100101 Features
Package / Case: Barrel, Stainless Steel
Operating Temperature: -40°C~105°C TA
Supply Voltage: 5V~24V
Frequency: 15kHz
GS100101 Applications
There are a lot of ZF Electronics
GS100101 Magnetic Position Sensors Modules applications.
- Wiper home/end position sensor
- End of travel and index sensors
- Industrial controls
- White goods
- Position and limit sensing
- RPM measurement
- Flow metering
- Commutation of brushless DC motors
- Factory automation
- Angle sensing
