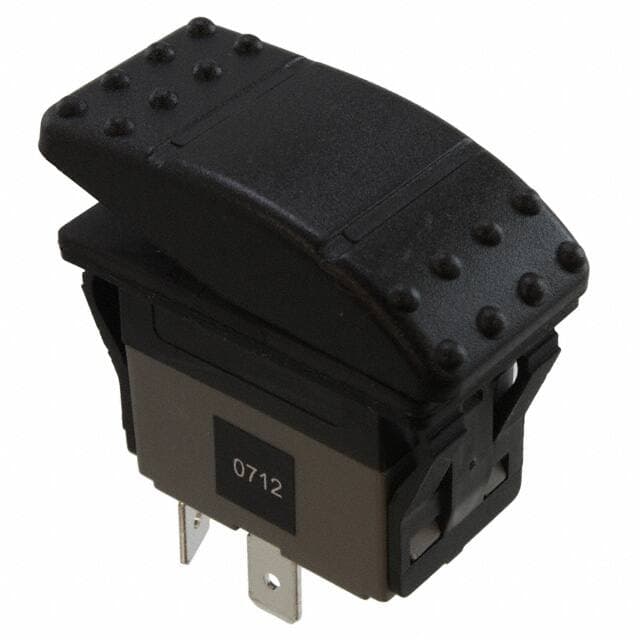

CW Industries GRB114A2NABA1

Manufacturer No:

GRB114A2NABA1

Manufacturer:

CW Industries

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

GRB114A2NABA1 information

CW Industries GRB114A2NABA1 technical specifications, attributes, parameters and parts with similar specifications to CW Industries GRB114A2NABA1.

Type
Parameter

Factory Lead Time
14 Weeks

Mount
Panel, Snap in

Mounting Type
Panel Mount, Snap-In

Housing Material
Thermoplastic

Packaging
Bulk

Series
GRB

Published
2012

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Quick Connect

Max Operating Temperature
85°C

Min Operating Temperature
-25°C

Color
Grey

Voltage - Rated DC
12V

Current Rating (Amps)
25A DC

Ingress Protection
IP67 - Dust Tight, Waterproof

Current Rating
25A

Termination Style
Quick Connect - 0.250 (6.3mm)

Body Length or Diameter
36.8808mm

Body Breadth
20.7772 mm

Actuator Type
Convex (Reverse V)

Circuit
SPST

Switch Function
On-Off

Panel Cutout Dimensions
Rectangular - 37.00mm x 21.10mm

Insulation Resistance
100000000Ohm

Color - Actuator/Cap
Black

Dielectric Withstanding Voltage
1500VAC V

Electrical Life
30,000 Cycles

Mechanical Life
100,000 Cycles

Switch Type
ROCKER SWITCH

Illumination Type
Illuminated

Contact (DC) Max Rating R Load
25A@12VDC

Actuator Marking
No Marking

Body Height
27.8892mm

Length - Termination
0.421 inch

Actuator Length
0.606 inch

RoHS Status
RoHS Compliant

Ratings
Dust Tight, IP68, Waterproof

Download datasheets and manufacturer documentation for CW Industries GRB114A2NABA1.

Datasheets:

cwindustries-grb114a2naba1-datasheets-6208.pdf

No product details available

User Guide
