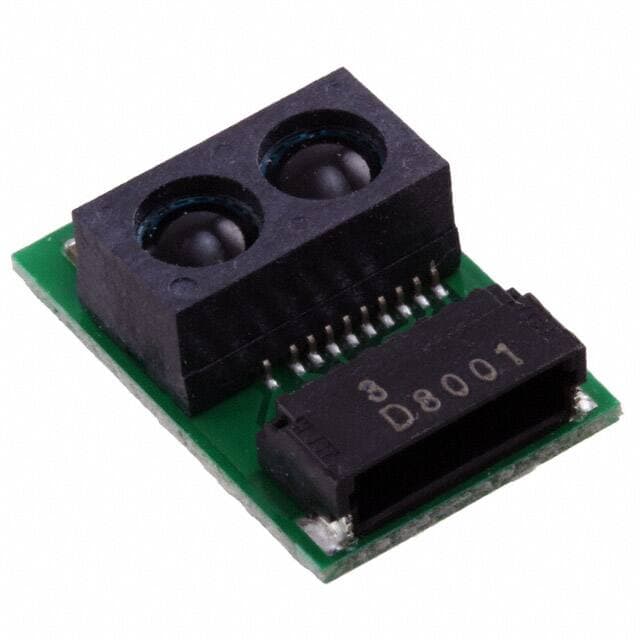

SHARP GP2Y0E03
SHARP GP2Y0E03

SHARP GP2Y0E03

Manufacturer No:

GP2Y0E03

Manufacturer:

SHARP

Package:

Description:

SENSOR OPTICAL 4-50CM I2C/ANALOG

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

GP2Y0E03 information

SHARP GP2Y0E03 technical specifications, attributes, parameters and parts with similar specifications to SHARP GP2Y0E03.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Operating Temperature
  • -10°C~60°C TA
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Voltage - Supply
  • 2.7V~5.5V
  • Reach Compliance Code
  • unknown
  • Output Type
  • I2C, Analog
  • Operating Supply Current
  • 36mA
  • Sensing Distance
  • 4 ~ 50cm
  • Sensors/Transducers Type
  • LINEAR POSITION SENSOR,PHOTOELECTRIC,RETROREFLECTIVE
  • Voltage - Output (Typ) @ Distance
  • 550mV @ 50cm
  • Voltage - Output Difference (Typ) @ Distance
  • 1.65V @ 4~50cm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for SHARP GP2Y0E03.

Datasheets:

PCN Design/Specification:

Product Description:

The GP2Y0E03 is a linear position sensor, specifically designed as a photoelectric, retroreflective optical sensor for distance measuring applications. Manufactured by SHARP/Socle Technology, this sensor is part of the Optical Sensors - Distance Measuring category and is compliant with RoHS regulations.

Features:

  • Operating Supply Current: The GP2Y0E03 operates at a low current consumption of 36mA, making it energy-efficient and suitable for battery-powered devices.
  • Operating Temperature Range: The sensor can function within a wide temperature range of -10°C to 60°C, ensuring reliable performance in various environments.
  • Output Options: The GP2Y0E03 provides both I2C and analog output options, allowing for flexibility in system design and integration.
  • Sensing Distance: The sensor can detect distances between 4 and 50 centimeters, making it suitable for a variety of applications.

Applications:

  • Primary Applications: The GP2Y0E03 is ideal for use in industrial automation, robotics, and logistics applications where precise distance measurement is required.
  • Secondary Applications: It can also be used in home appliances, medical devices, and automotive systems where distance sensing is necessary.

Alternative Parts:

  • Alternative Part 1: The GP2Y0E03 can be replaced with the GP2Y0E02, which has a slightly different sensing distance range but similar operating characteristics.
  • Alternative Part 2: The GP2Y0E04 offers a longer sensing distance range but has a higher operating current consumption.

Embedded Modules:

  • Module 1: The GP2Y0E03 is often used in embedded systems, such as robotics and automation platforms, where precise distance measurement is crucial.
  • Module 2: It can also be integrated into smart home devices, such as automated lighting systems, where distance sensing is necessary.

FAQs:

Q: What is the sensing distance range of the GP2Y0E03? A: The GP2Y0E03 can detect distances between 4 and 50 centimeters.

Q: What are the output options of the GP2Y0E03? A: The sensor provides both I2C and analog output options.

Q: What is the operating temperature range of the GP2Y0E03? A: The sensor can operate within a temperature range of -10°C to 60°C.

Q: Is the GP2Y0E03 RoHS compliant? A: Yes, the GP2Y0E03 is RoHS compliant, ensuring environmental sustainability.

Q: What is the operating supply voltage range of the GP2Y0E03? A: The sensor can operate with a supply voltage between 2.7V and 5.5V.
