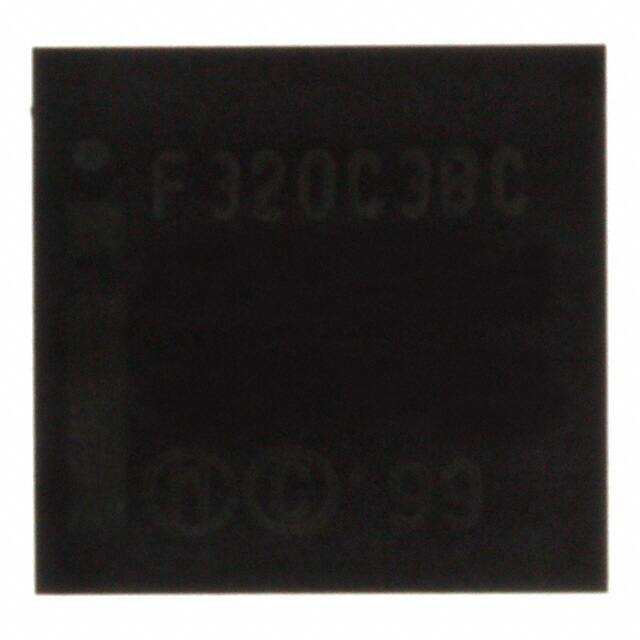

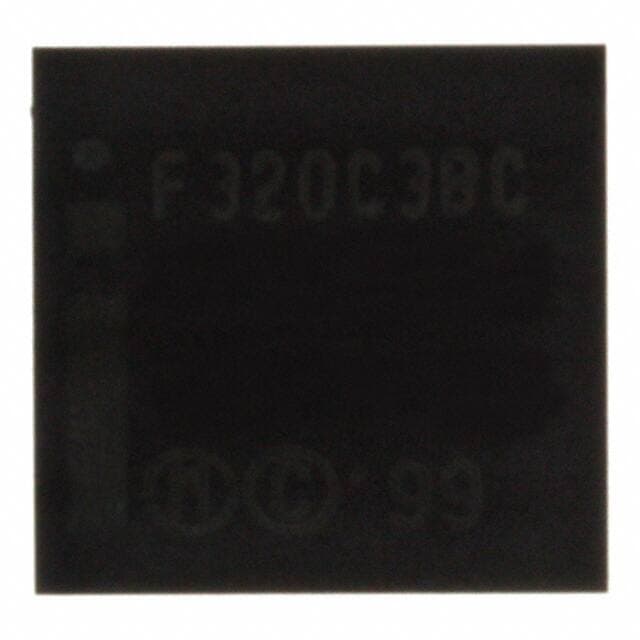

INTEL GE28F320C3BC90

Manufacturer No:

GE28F320C3BC90

Manufacturer:

INTEL

Package:

48-VFBGA

Description:

1.8/3.33/3.3V V 47 Pin Memory IC 7.286mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

GE28F320C3BC90 information

INTEL GE28F320C3BC90 technical specifications, attributes, parameters and parts with similar specifications to INTEL GE28F320C3BC90.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
48-VFBGA

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Published
2002

JESD-609 Code
e0

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
48

ECCN Code
3A991.B.1.A

Terminal Finish
Tin/Lead (Sn/Pb)

Additional Feature
USER-SELECTABLE 3V OR 12V VPP; BOTTOM BOOT BLOCK

HTS Code
8542.32.00.51

Technology
FLASH - Boot Block

Voltage - Supply
2.7V~3.6V

Terminal Position
BOTTOM

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
3V

Terminal Pitch
0.75mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
47

JESD-30 Code
R-PBGA-B48

Supply Voltage-Max (Vsup)
3.6V

Power Supplies
1.8/3.33/3.3V

Supply Voltage-Min (Vsup)
2.7V

Memory Size
32Mb 2M x 16

Memory Type
Non-Volatile

Operating Mode
ASYNCHRONOUS

Supply Current-Max
0.055mA

Memory Format
FLASH

Memory Interface
Parallel

Organization
2MX16

Memory Width
16

Write Cycle Time - Word, Page
90ns

Standby Current-Max
0.000005A

Memory Density
33554432 bit

Access Time (Max)
90 ns

Programming Voltage
3V

Data Polling
NO

Toggle Bit
NO

Command User Interface
YES

Number of Sectors/Size
863

Sector Size
4K32K

Boot Block
BOTTOM

Common Flash Interface
YES

Download datasheets and manufacturer documentation for INTEL GE28F320C3BC90.

Datasheets:

intel-gt28f320c3ta110-datasheets-8344.pdf

GE28F320C3BC90 Overview

As far as its memory type goes, it falls into the Non-Volatile category. You can get memory ics in a Tray case. 48-VFBGA case encloses it. There is 32Mb 2M x 16 of memory on the chip. The device uses a mainstream FLASH-format memory. Suitable for use in a wide range of demanding applications, this device offers an extended operating temperature range of -40°C~85°C TA. There is a voltage range of 2.7V~3.6V for the supply voltage. It is recommended that the mounting type be Surface Mount. There are 48 terminations on the chip. There are 1 functions supported by this part as part of the comprehensive working process. The memory device is designed to be supplied with an 3V volt power supply in order to operate properly. It is worth noting that this memory device has 47 pins, which indicates it has 47 memory locations. Despite all its benefits, this memory chip also offers USER-SELECTABLE 3V OR 12V VPP; BOTTOM BOOT BLOCK for improved system performance. As for the power supply, this memory chip only needs 1.8/3.33/3.3V . The device is able to run from a max supply current of 0.055mA , so it can be used in any environment. The programming voltage required for certain nonvolatile memory arrays is 3V. There are 863 specific divisions in this ic memory chip, and each division has a specific size.

GE28F320C3BC90 Features

Package / Case: 48-VFBGA
Additional Feature:USER-SELECTABLE 3V OR 12V VPP; BOTTOM BOOT BLOCK

GE28F320C3BC90 Applications

There are a lot of Intel
GE28F320C3BC90 Memory applications.

multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
