Manufacturer No:

GBPC3508W-G

Manufacturer:

Comchip Technology

Package:

4-Square, GBPC-W

Description:

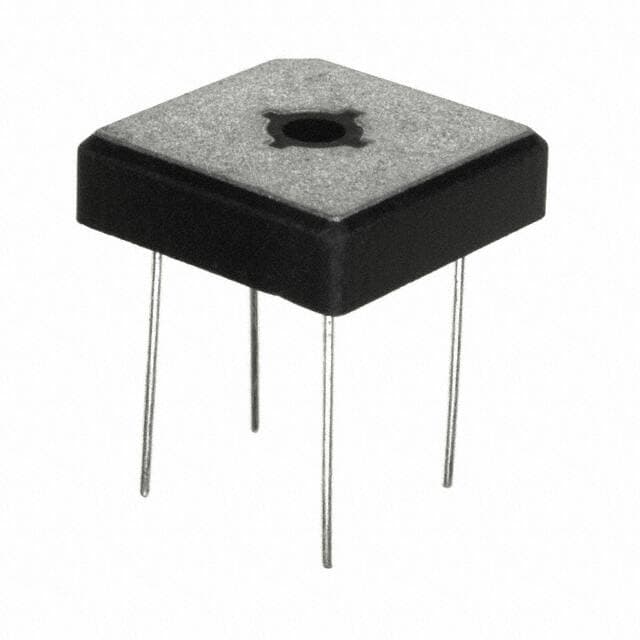

Single Phase Bridge Rectifier Standard Through Hole -55°C~150°C TJ 10?A @ 800V 1.1V @ 17.5A 4-Termination 1-Phase 4-Square, GBPC-W Tray

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

GBPC3508W-G information

Comchip Technology GBPC3508W-G technical specifications, attributes, parameters and parts with similar specifications to Comchip Technology GBPC3508W-G.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • 4-Square, GBPC-W
  • Diode Element Material
  • SILICON
  • Operating Temperature
  • -55°C~150°C TJ
  • Packaging
  • Tray
  • Published
  • 2007
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 4
  • ECCN Code
  • EAR99
  • Additional Feature
  • UL RECOGNIZED
  • HTS Code
  • 8541.10.00.80
  • Subcategory
  • Bridge Rectifier Diodes
  • Technology
  • Standard
  • Terminal Position
  • UPPER
  • Terminal Form
  • WIRE
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • GBPC3508
  • JESD-30 Code
  • S-XUFM-W4
  • Number of Elements
  • 4
  • Configuration
  • BRIDGE, 4 ELEMENTS
  • Current - Reverse Leakage @ Vr
  • 10?A @ 800V
  • Voltage - Forward (Vf) (Max) @ If
  • 1.1V @ 17.5A
  • Case Connection
  • ISOLATED
  • Max Reverse Leakage Current
  • 10?A
  • Max Surge Current
  • 400A
  • Output Current-Max
  • 35A
  • Current - Average Rectified (Io)
  • 35A
  • Number of Phases
  • 1
  • Voltage - Peak Reverse (Max)
  • 800V
  • Breakdown Voltage-Min
  • 800V
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Comchip Technology GBPC3508W-G.

Datasheets:

GBPC3508W-G Overview


GBPC3508 refers to a base part number that can be used to identify several related parts.Bridge rectifier is a type of electronic component that is available in a 4-Square, GBPC-W package.A monitoring should be done of the reverse leakage current and it should not be allowed to exceed zero.Bridge rectifier is mounted using the Through Hole method.Temperatures below -55°C~150°C TJ ensure normal operation.This device is capable of supporting the maximum output voltage of 35A.Monitoring surge current and not allowing it to exceed 400A is essential.

GBPC3508W-G Features


4-Square, GBPC-W package
operating at a temperature of -55°C~150°C TJ
the maximum output voltage of 35A


GBPC3508W-G Applications


There are a lot of Comchip Technology
GBPC3508W-G applications of bridge rectifiers.


  • Extremely robust construction
  • Fuse-in-glass diodes design
  • Electrically isolated aluminum case
  • Motor controls ? Low Voltage and Medium Voltage converters
  • SCR power bridges for solid state starters
  • SCR and diode based input rectifiers
  • Crowbar systems for motor drives
  • Wind power (alternative energy) ? Converters available as diodes, SCRs or IGBTs
  • Transportation ? Traction rectifiers and auxiliary rectifiers
  • Inductive heating ? Input rectifiers

User Guide
