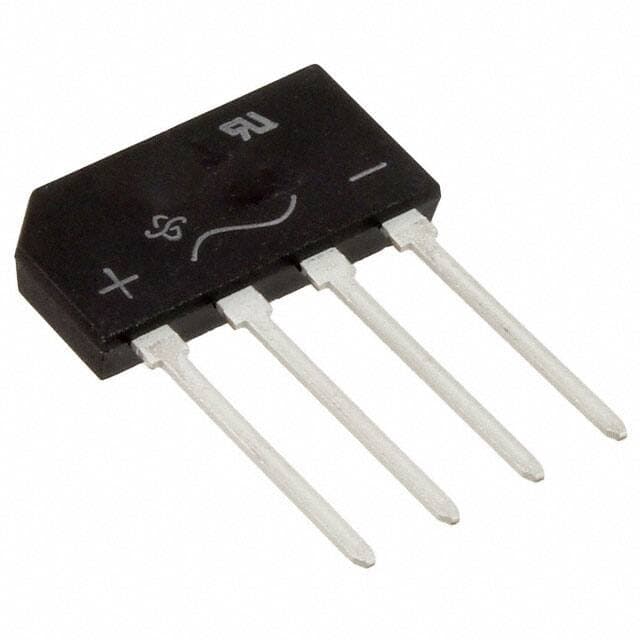

VISHAY GBL06-E3/51
Manufacturer No:
GBL06-E3/51
Manufacturer:
Package:
4-SIP, GBL
Description:
Single Phase Bridge Rectifier Standard Through Hole -55°C~150°C TJ 5?A @ 600V 1.1V @ 4A 4-Termination 1-Phase 4-SIP, GBL Bulk
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
GBL06-E3/51 information
VISHAY GBL06-E3/51 technical specifications, attributes, parameters and parts with similar specifications to VISHAY GBL06-E3/51.
- Type
- Parameter
- Factory Lead Time
- 8 Weeks
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Package / Case
- 4-SIP, GBL
- Number of Pins
- 4
- Diode Element Material
- SILICON
- Operating Temperature
- -55°C~150°C TJ
- Packaging
- Bulk
- Published
- 2011
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 4
- Terminal Finish
- Matte Tin (Sn)
- Additional Feature
- UL RECOGNIZED
- Subcategory
- Bridge Rectifier Diodes
- Technology
- Standard
- Pin Count
- 4
- Number of Elements
- 1
- Element Configuration
- Single
- Diode Type
- Single Phase
- Current - Reverse Leakage @ Vr
- 5?A @ 600V
- Voltage - Forward (Vf) (Max) @ If
- 1.1V @ 4A
- Forward Current
- 4A
- Max Reverse Leakage Current
- 5?A
- Max Surge Current
- 150A
- Output Current-Max
- 3A
- Breakdown Voltage
- 600V
- Current - Average Rectified (Io)
- 3A
- Forward Voltage
- 1V
- Number of Phases
- 1
- Peak Reverse Current
- 5?A
- Max Repetitive Reverse Voltage (Vrrm)
- 600V
- Peak Non-Repetitive Surge Current
- 150A
- Max Forward Surge Current (Ifsm)
- 150A
- Height
- 10.7mm
- Length
- 20.9mm
- Width
- 3.56mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for VISHAY GBL06-E3/51.
Other Related Documents:
RohsStatement:
GBL06-E3/51 Overview
There are no pins on rectifier.A forward voltage of 4A is required to operate this device.A 4-SIP, GBL package is a type of electronic component.Reverse leakage current should be monitored and not allowed to exceed 5?A.Through Hole is the mounting method for the device.Its normal operation is ensured by operating at a temperature of -55°C~150°C TJ.Bridge rectifier can support a maximum output voltage of 3A.Bridge rectifier is important to monBridge rectifieror surge current and not allow Bridge rectifier to exceed 150A.This device is powered by a peak reverse voltage of 5?A.
GBL06-E3/51 Features
4 pin count
4A forward voltage
forward voltage of 4A
4-SIP, GBL package
operating at a temperature of -55°C~150°C TJ
the maximum output voltage of 3A
peak reverse voltage of 5?A
a reverse voltage peak of 5?A
GBL06-E3/51 Applications
There are a lot of Vishay Semiconductor Diodes Division
GBL06-E3/51 applications of bridge rectifiers.
- Working peak reverse voltages 200 to 1 ,000 volts
- Military and other high-reliability applications
- High forward surge current capability
- Low thermal resistance
- Extremely robust construction
- Fuse-in-glass diodes design
- Electrically isolated aluminum case
- Motor controls ? Low Voltage and Medium Voltage converters
- SCR power bridges for solid state starters
- SCR and diode based input rectifiers
