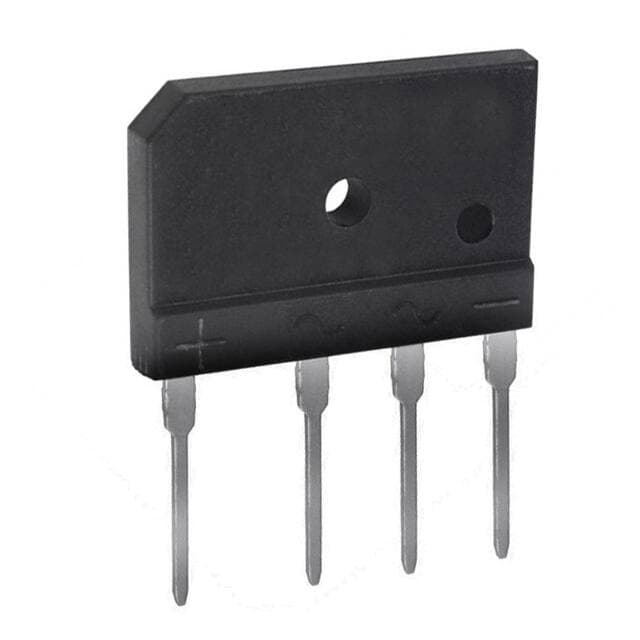

Diodes GBJ2506-F

Manufacturer No:

GBJ2506-F

Manufacturer:

Diodes

Package:

4-SIP, GBJ

Description:

Single Phase Bridge Rectifier Standard Through Hole -65°C~150°C TJ 10?A @ 600V 1.05V @ 12.5A 4-Termination 1-Phase 4-SIP, GBJ Tube

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

GBJ2506-F information

Diodes GBJ2506-F technical specifications, attributes, parameters and parts with similar specifications to Diodes GBJ2506-F.

Type
Parameter

Factory Lead Time
9 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
4-SIP, GBJ

Number of Pins
4

Diode Element Material
SILICON

Operating Temperature
-65°C~150°C TJ

Packaging
Tube

Published
2008

JESD-609 Code
e3

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
4

Termination
Through Hole

Terminal Finish
Matte Tin (Sn)

Additional Feature
UL RECOGNIZED

Capacitance
85pF

Subcategory
Bridge Rectifier Diodes

Voltage - Rated DC
600V

Technology
Standard

Peak Reflow Temperature (Cel)
260

Current Rating
25A

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
4

Number of Elements
1

Voltage
600V

Element Configuration
Single

Current
25A

Diode Type
Single Phase

Current - Reverse Leakage @ Vr
10?A @ 600V

Output Current
25A

Voltage - Forward (Vf) (Max) @ If
1.05V @ 12.5A

Case Connection
ISOLATED

Forward Current
25A

Max Surge Current
350A

Breakdown Voltage
600V

Forward Voltage
1.05V

Average Rectified Current
25A

Number of Phases
1

Peak Reverse Current
10?A

Max Repetitive Reverse Voltage (Vrrm)
600V

Peak Non-Repetitive Surge Current
350A

Max Forward Surge Current (Ifsm)
350A

Reverse Voltage (DC)
420V

Height
24.5mm

Length
30.3mm

Download datasheets and manufacturer documentation for Diodes GBJ2506-F.

GBJ2506-F Overview

Having 4 pins, it is not equipped with anything.When the forward voltage is set to 25A, the device operates.By using the base part number GBJ2506, the base part number can identify several related parts.Basically, it's an electronic component with a 4-SIP, GBJ package.Through Hole represents the mounting method.In order to ensure normal operation, the temperature must be set to -65°C~150°C TJ.Monitor surge currents and limit them to zero.During its operation, this device is powered by a peak reverse voltage of 10?A.Since its output current is zero, it offers maximum design flexibility.

GBJ2506-F Features

4 pin count
25A forward voltage
forward voltage of 25A
4-SIP, GBJ package
operating at a temperature of -65°C~150°C TJ
peak reverse voltage of 10?A
a reverse voltage peak of 10?A
25A output current

GBJ2506-F Applications

There are a lot of Diodes Incorporated
GBJ2506-F applications of bridge rectifiers.

Motor controls ? Low Voltage and Medium Voltage converters
SCR power bridges for solid state starters
SCR and diode based input rectifiers
Crowbar systems for motor drives
Wind power (alternative energy) ? Converters available as diodes, SCRs or IGBTs
Transportation ? Traction rectifiers and auxiliary rectifiers
Inductive heating ? Input rectifiers
Welding systems ? Input rectifiers and fast recovery diodes
Uninterruptible power supplies ? SCR transfer switches and input rectifiers
Electroplating systems ? Input SCRs and output rectifiers
