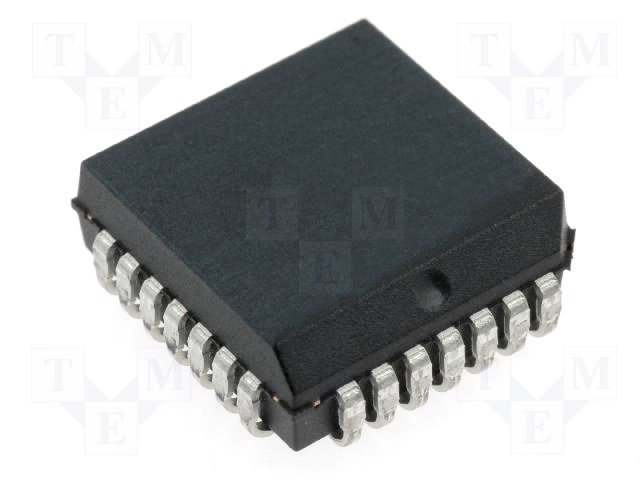

LATTICE GAL22V10D-15QJN

Manufacturer No:

GAL22V10D-15QJN

Manufacturer:

LATTICE

Package:

28-LCC (J-Lead)

Description:

5V 1.27mm PMIC GAL®22V10 Series GAL22V10 28 Pin 83.3MHz 5V 28-LCC (J-Lead)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

GAL22V10D-15QJN information

LATTICE GAL22V10D-15QJN technical specifications, attributes, parameters and parts with similar specifications to LATTICE GAL22V10D-15QJN.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
28-LCC (J-Lead)

Number of Pins
28

Operating Temperature
0°C~75°C TA

Packaging
Tube

Series
GAL®22V10

Published
1996

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

HTS Code
8542.39.00.01

Subcategory
Programmable Logic Devices

Technology
CMOS

Terminal Position
QUAD

Terminal Form
J BEND

Peak Reflow Temperature (Cel)
245

Supply Voltage
5V

Terminal Pitch
1.27mm

Frequency
83.3MHz

Base Part Number
GAL22V10

Pin Count
28

Number of Outputs
10

Operating Supply Voltage
5V

Power Supplies
5V

Programmable Type
EE PLD

Max Supply Voltage
5.25V

Min Supply Voltage
4.75V

Number of I/O
10

Nominal Supply Current
55mA

Propagation Delay
15 ns

Turn On Delay Time
15 ns

Architecture
PAL-TYPE

Output Function
MACROCELL

Number of Macro Cells
10

Number of Dedicated Inputs
11

Voltage Supply - Internal
4.75V~5.25V

Number of Product Terms
132

Length
11.5062mm

Height Seated (Max)
4.572mm

Width
11.5062mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for LATTICE GAL22V10D-15QJN.

GAL22V10D-15QJN Overview

There are 10 macro cells, which are cells in a mobile phone network that provides radio coverage served by a high-power cell site (tower, antenna or mast).It is embedded in the 28-LCC (J-Lead) package.It is programmed with 10 I/Os.There are 28 terminations, which are the practice of ending a transmission line with a device that matches the characteristic impedance of the line.The terminal position of this electrical part is QUAD, which serves as an important access point for passengers or freight.It is powered from a supply voltage of 5V.This part is included in Programmable Logic Devices.It is packaged in the way of Tube.It operates with the operating temperature of 0°C~75°C TA to ensure its reliability.It is mounted in the way of Surface Mount.It is a type of FPGA belonging to the GAL®22V10 series.It is equipped with 28 pin count.According to the GAL22V10, its related parts can be found.The supply voltage should be maintained at 5V for high efficiency.This electronic part is mounted in the way of Surface Mount.It is designed with 28 pins.It operates with the maximal supply voltage of 5.25V.It operates with the minimal supply voltage of 4.75V.It operates from 5V power supplies.The frequency that can be achieved is 83.3MHz.There are 11 dedicated inputs used to detect the status of input signals.It is configured with 10 output.There are 132 product terms, which are conjunction of literals, where each literal is either a variable or its negation.

GAL22V10D-15QJN Features

28-LCC (J-Lead) package
10 I/Os
The operating temperature of 0°C~75°C TA
28 pin count
28 pins
5V power supplies
10 outputs

GAL22V10D-15QJN Applications

There are a lot of Lattice Semiconductor Corporation
GAL22V10D-15QJN CPLDs applications.

Power up sequencing
Voltage level translation
Timing control
Interface bridging
I/O expansion
Discrete logic functions
Bootloaders for FPGAs
Address decoders
Custom state machines
Digital systems
