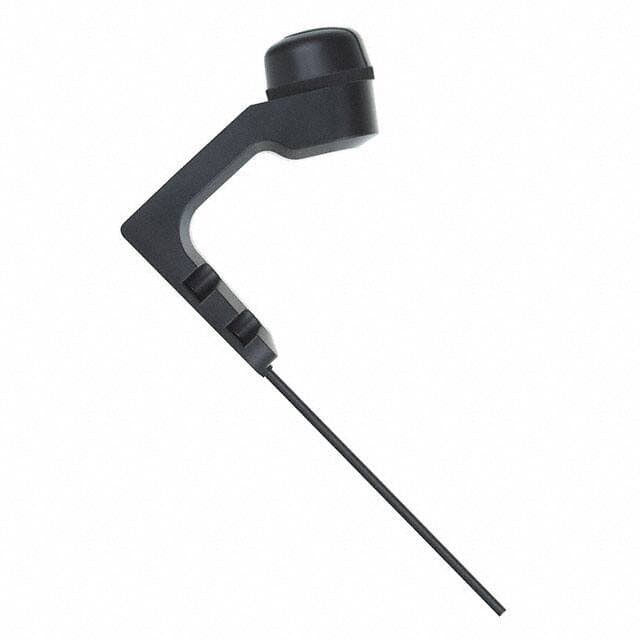

Taoglas Limited G20.B.305111.WMC

Manufacturer No:

G20.B.305111.WMC

Manufacturer:

Taoglas Limited

Package:

SMA

Description:

2 Bands Dome UHF 300MHz~1GHz UHF 1GHz~2GHz Chassis Mount SMA Male 892MHz 1.94GHz 4.21dBi Bulk 1.142 29.00mm CDMA, HSDPA, GSM, UMTS, WCDMA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

G20.B.305111.WMC information

Taoglas Limited G20.B.305111.WMC technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited G20.B.305111.WMC.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Chassis Mount

Mounting Type
Chassis Mount

Package / Case
SMA

Packaging
Bulk

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
SMA Male

Applications
CDMA, HSDPA, GSM, UMTS, WCDMA

Max Power Dissipation
5W

Ingress Protection
IP69K

Impedance
50Ohm

Power - Max
5W

Gain
4.21dBi

Max Frequency
2.17GHz

Frequency Range
824MHz~960MHz 1.71GHz~2.17GHz

RF Family/Standard
Cellular

Antenna Type
Dome

Number of Bands
2

Frequency Group
UHF 300MHz~1GHz UHF 1GHz~2GHz

Frequency (Center/Band)
892MHz 1.94GHz

Height
29.0068mm

Height (Max)
1.142 29.00mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Taoglas Limited G20.B.305111.WMC.

G20.B.305111.WMC Overview

The Chassis Mount allows it to be used for RF Antennas in general.Bulk solid enclosure protects the RF modulator.In most RF ic designs, it is qualified as a Chassis Mount.Due to its SMA packaging, the RF ic is convenient for international shipping.

G20.B.305111.WMC Features

With Chassis Mount

G20.B.305111.WMC Applications

There are a lot of Taoglas Limited
G20.B.305111.WMC RF Antennas applications.

Generators
Lightings
Rectifiers
Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
