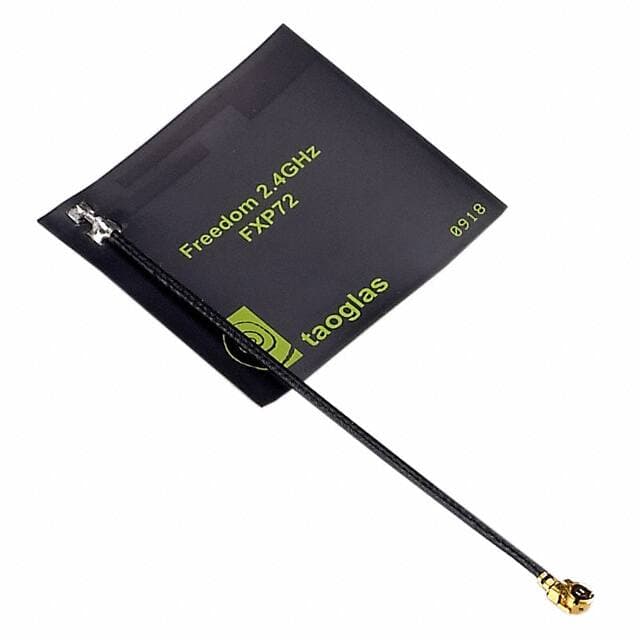

Taoglas Limited FXP72.07.0053A

Manufacturer No:

FXP72.07.0053A

Manufacturer:

Taoglas Limited

Package:

Description:

1 Bands Flat Patch UHF 2GHz~3GHz Adhesive U.FL (UMCC), IPEX MHF1 2.4GHz 5dBi Bulk Bluetooth, WLAN, Zigbee?

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FXP72.07.0053A information

Taoglas Limited FXP72.07.0053A technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited FXP72.07.0053A.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Adhesive

Packaging
Bulk

Series
Freedom

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
U.FL (UMCC), IPEX MHF1

Applications
Bluetooth, WLAN, Zigbee?

Power Rating
5W

Max Power Dissipation
5W

Frequency
2.4835GHz

Operating Temperature (Max)
85°C

Operating Temperature (Min)
-40°C

Polarization
LINEAR

Impedance
50Ohm

Gain
5dBi

Frequency Range
2.4GHz~2.483.5GHz

RF/Microwave Device Type
SLOT ANTENNA

RF Family/Standard
802.15.4, Bluetooth, WiFi

Antenna Type
Flat Patch

VSWR
2

Number of Bands
1

Frequency Group
UHF 2GHz~3GHz

Frequency (Center/Band)
2.4GHz

Height
76.2?m

Length
31mm

Width
31mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Taoglas Limited FXP72.07.0053A.

FXP72.07.0053A Overview

As it has a Adhesive value, it can be used for general RF Antennas.This is a Antenna RF from the Freedom series.There is a Bulk solid enclosure around the RF modulator.

FXP72.07.0053A Features

With Adhesive
Freedom series

FXP72.07.0053A Applications

There are a lot of Taoglas Limited
FXP72.07.0053A RF Antennas applications.

Rectifiers
Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
