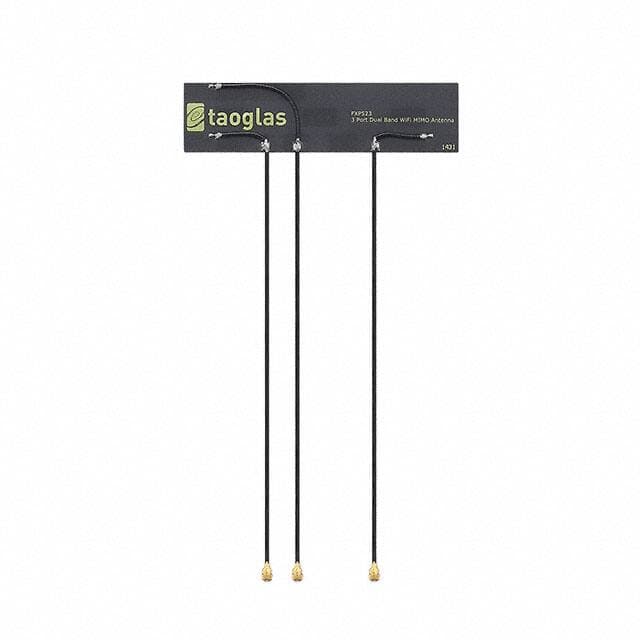

Taoglas Limited FXP523.A.07.A.001

Manufacturer No:

FXP523.A.07.A.001

Manufacturer:

Package:

Description:

2 Bands Flat Patch UHF 2GHz~3GHz SHF f > 4GHz Adhesive U.FL (UMCC), IPEX MHF1 2.4GHz 5.5GHz 6.69dBi Bulk 0.006 0.15mm WLAN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FXP523.A.07.A.001 information

Taoglas Limited FXP523.A.07.A.001 technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited FXP523.A.07.A.001.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Adhesive

Mounting Type
Adhesive

Packaging
Bulk

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
U.FL (UMCC), IPEX MHF1

Applications
WLAN

Max Power Dissipation
2W

Frequency
5.85GHz

Power - Max
2W

Gain
6.69dBi

Frequency Range
2.4GHz~2.5GHz 5.15GHz~5.85GHz

RF Family/Standard
WiFi

Antenna Type
Flat Patch

Number of Bands
2

Frequency Group
UHF 2GHz~3GHz SHF f > 4GHz

Frequency (Center/Band)
2.4GHz 5.5GHz

Height
152.4?m

Height (Max)
0.006 0.15mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Taoglas Limited FXP523.A.07.A.001.

FXP523.A.07.A.001 Overview

It is suitable for general RF Antennas when it is set to Adhesive.Bulk is the solid enclosure in which RF modulator is packaged.This Adhesive makes it suitable for most RF ics.

FXP523.A.07.A.001 Features

With Adhesive

FXP523.A.07.A.001 Applications

There are a lot of Taoglas Limited
FXP523.A.07.A.001 RF Antennas applications.

Lightings
Rectifiers
Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
