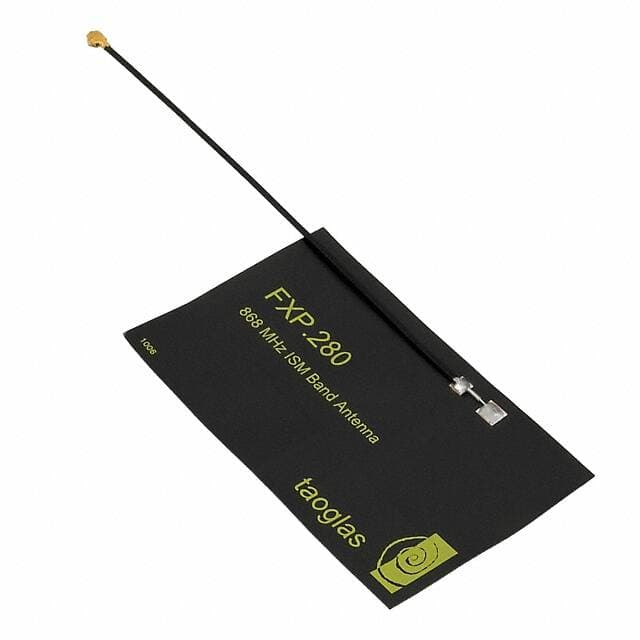

Taoglas Limited FXP280.07.0100A

Manufacturer No:

FXP280.07.0100A

Manufacturer:

Taoglas Limited

Package:

Description:

1 Bands Flat Patch UHF 300MHz~1GHz Adhesive U.FL (UMCC), IPEX MHF1 866MHz 1.5dBi Bulk 0.004 0.10mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FXP280.07.0100A information

Taoglas Limited FXP280.07.0100A technical specifications, attributes, parameters and parts with similar specifications to Taoglas Limited FXP280.07.0100A.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Adhesive

Mounting Type
Adhesive

Packaging
Bulk

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
U.FL (UMCC), IPEX MHF1

Max Power Dissipation
5W

Frequency
870MHz

Impedance
50Ohm

Power - Max
5W

Gain
1.5dBi

Max Frequency
870MHz

Frequency Range
863MHz~870MHz

Antenna Type
Flat Patch

VSWR
2

Number of Bands
1

Frequency Group
UHF 300MHz~1GHz

Frequency (Center/Band)
866MHz

Return Loss
-20dB

Height
101.6?m

Length
75mm

Width
45mm

Height (Max)
0.004 0.10mm

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Taoglas Limited FXP280.07.0100A.

FXP280.07.0100A Overview

The Adhesive allows it to be used for RF Antennas in general.Bulk solid enclosure protects the RF modulator.In most RF ic designs, it is qualified as a Adhesive.

FXP280.07.0100A Features

With Adhesive

FXP280.07.0100A Applications

There are a lot of Taoglas Limited
FXP280.07.0100A RF Antennas applications.

Generators
Lightings
Rectifiers
Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
