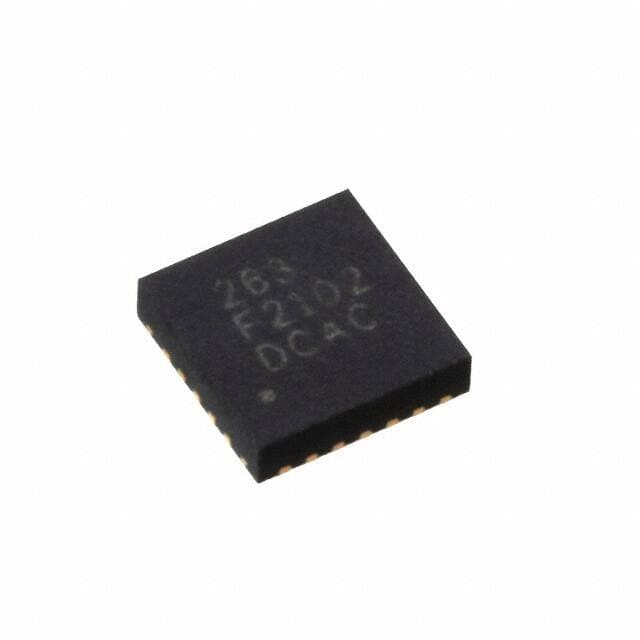

NXP FXAS21002CQR1

Manufacturer No:

FXAS21002CQR1

Manufacturer:

NXP

Package:

24-TFQFN Exposed Pad

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FXAS21002CQR1 information

NXP FXAS21002CQR1 technical specifications, attributes, parameters and parts with similar specifications to NXP FXAS21002CQR1.

Type
Parameter

Factory Lead Time
12 Weeks

Package / Case
24-TFQFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Published
2014

Feature
Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
24

ECCN Code
EAR99

Type
Digital

Additional Feature
ALSO REQUIRE INTERFACE VOLTAGE OF 1.62V TO 3.9V

HTS Code
8542.39.00.01

Subcategory
Other Analog ICs

Voltage - Supply
1.95V~3.6V

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
2.5V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

JESD-30 Code
S-PQCC-N24

Output Type
I2C, SPI

Supply Voltage-Max (Vsup)
3.6V

Power Supplies
2/3.3V

Supply Voltage-Min (Vsup)
1.95V

Current - Supply
2.7mA

Bandwidth
4Hz ~ 256Hz

Axis
X (Pitch), Y (Roll), Z (Yaw)

Range °/s
±250, 500, 1000, 2000

Sensitivity (LSB/(°/s))
16 ~ 128

Length
4mm

Height Seated (Max)
1.05mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP FXAS21002CQR1.

Environmental Information:

nxpusainc-tef6657hnv102k-environmentalinformation-9391.pdf

PCN Packaging:

nxpusainc-mbc13720nt1-pcnpackaging-6034.pdf

Description: The FXAS21002CQR1 from NXP Semiconductors is a 3-axis digital angular rate gyroscope with a voltage range of 3.6 V. It is capable of measuring angular rates up to ±250/500/1000/2000°/s. It features a low power consumption of 1.2 mA and a low noise density of 0.0025°/s/?Hz. It also has a wide temperature range of -40°C to +85°C.

Features:
? 3-axis digital angular rate gyroscope
? Voltage range of 3.6 V
? Measuring angular rates up to ±250/500/1000/2000°/s
? Low power consumption of 1.2 mA
? Low noise density of 0.0025°/s/?Hz
? Wide temperature range of -40°C to +85°C

Applications: The FXAS21002CQR1 from NXP Semiconductors is suitable for use in a variety of applications such as motion sensing, navigation, and stabilization. It can be used in consumer electronics, automotive, industrial, and medical applications. It is also suitable for use in robotics, drones, and other autonomous systems.
